Ricoh Aficio MP 8001 Service Manual

Replacement and Adjustment
D454 48 SM

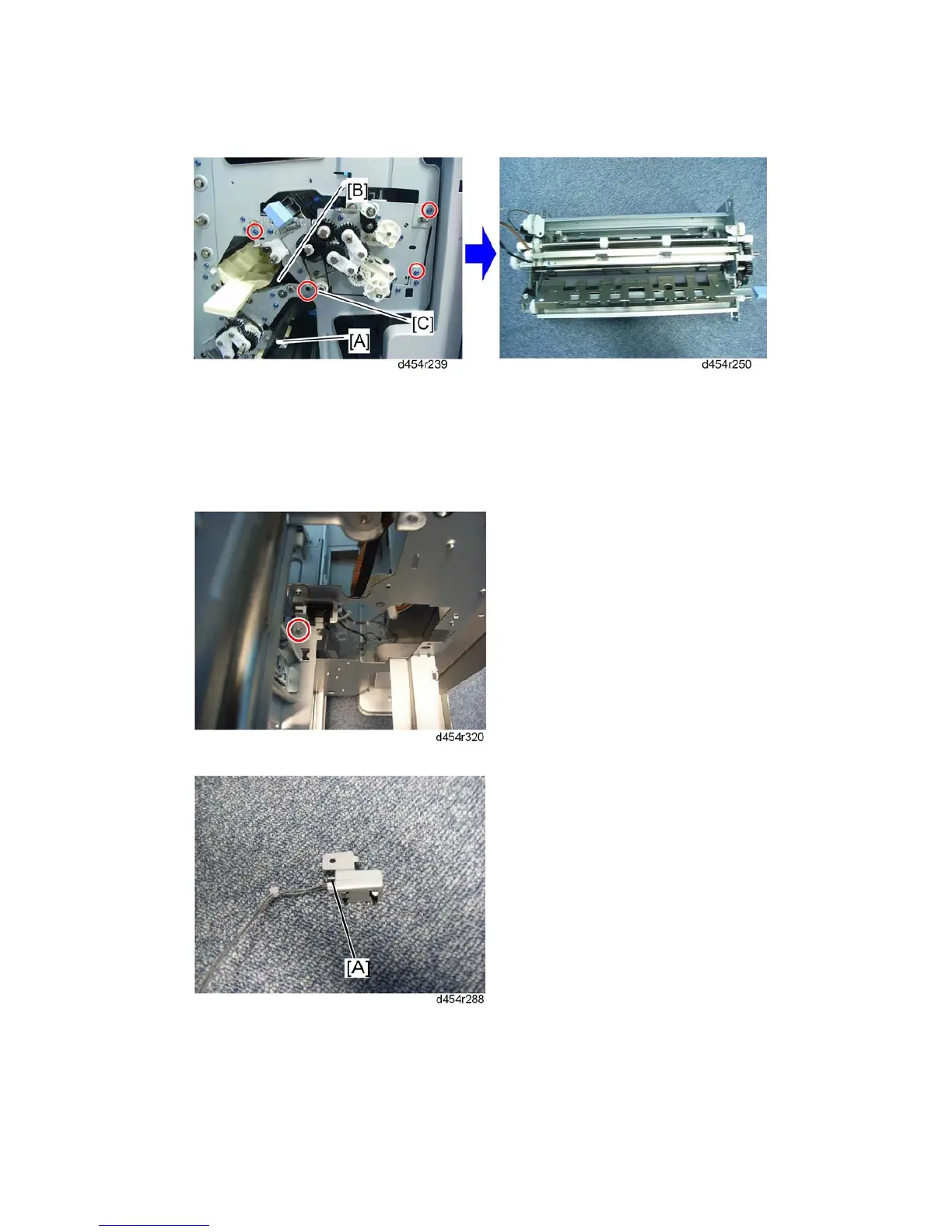

11. Lower guide plate [A], keep the upper guide plate [B] up a little and remove the first fold
unit ( x 3, snap fit [C] x 1)
1.6.11 DYNAMIC ROLLER HP SENSOR
1. First fold unit ( p.45)
2. Dynamic roller HP sensor bracket ( x 1)
3. Dynamic roller HP sensor [A] ( x 1)
