Ricoh Aficio MP 8001 Service Manual

LG/B4 Feeder Kit (B474)
SM 2-31 D062/D063/D065/D066
Installation
2.5.2 INSTALLATION PROCEDURE
If the LCT is connected to the machine
1. Open the cover and remove the paper.

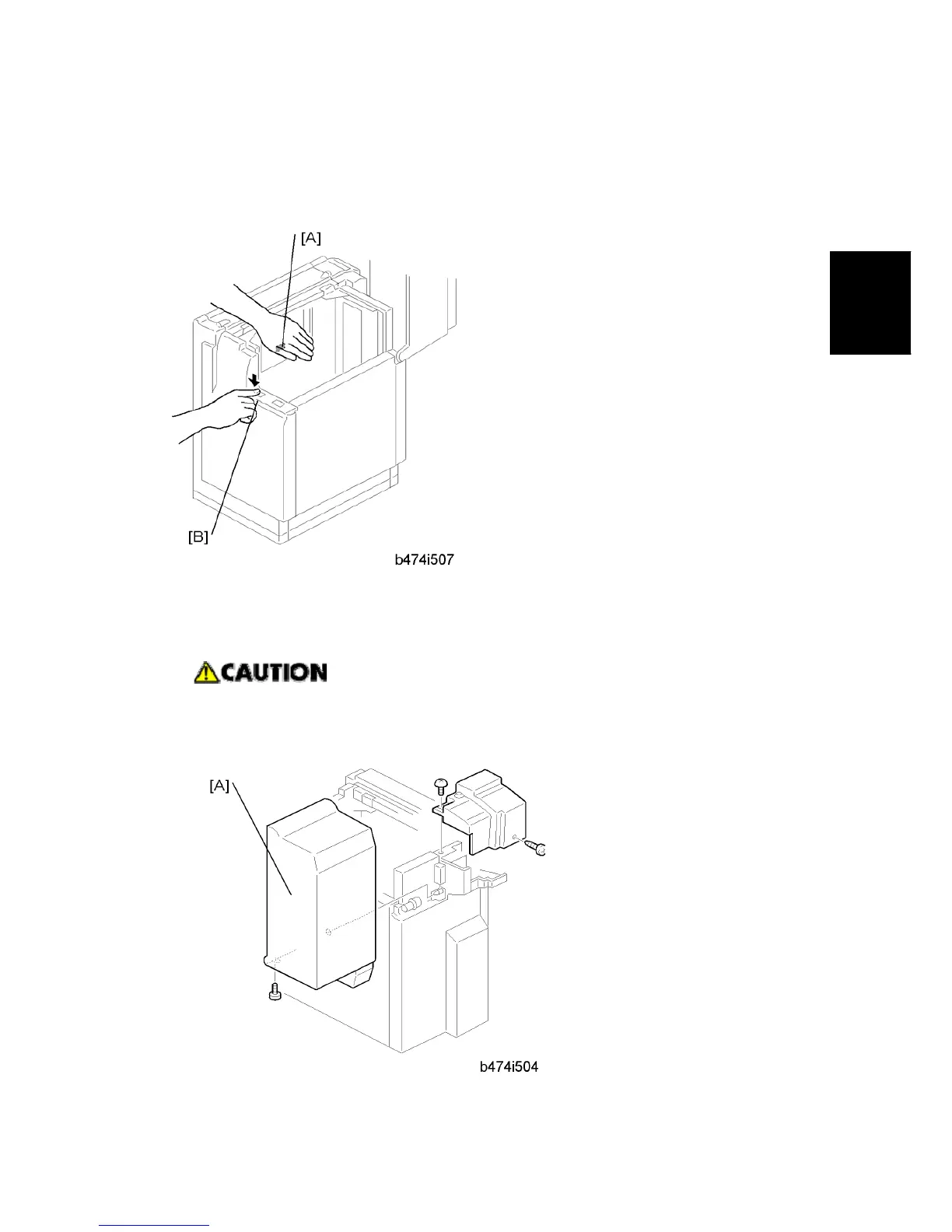

2. Lower the LCT tray. Cover the near end sensor [A], then press the tray down button [B]
to lower the tray bottom plate.
 Switch the machine off and unplug the machine before starting the following
procedure.
3. Disconnect the LCT from the machine.
4. Remove the LCT upper cover [A].

Ricoh Aficio MP 8001 Specifications

General

Brand	Ricoh
Model	Aficio MP 8001
Category	All in One Printer
Language	English
