Ricoh Aficio MP 8001 Service Manual

Paper Feed
D062/D063/D065/D066 4-98 SM
1. Remove the LCT entrance guide cover [A].
2. Relay sensor bracket [B] (
x 1)
3. Relay sensor [C] (
x 1)

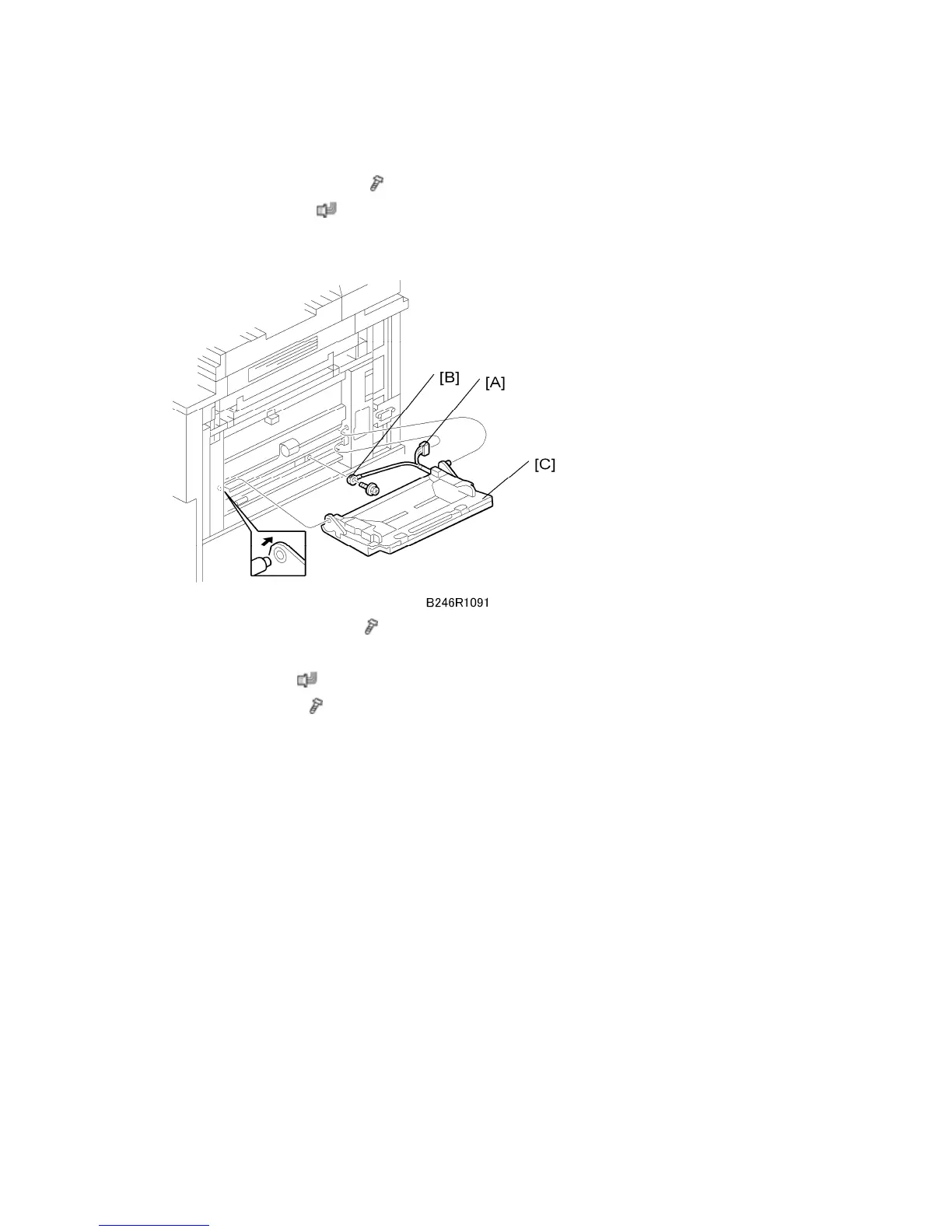

4.11.13 BY-PASS PAPER SIZE DETECTION BOARD
1. Registration inner cover (
x 2)
 Not shown. This cover is directly below the by-pass tray.
2. Connector [A] (
x 1)
3. Ground wire [B] (
x 1)
4. By-pass tray [C]
 Disconnect the by-pass tray from the pins on both sides.
