ADF
SM 4-127 D062/D063/D065/D066
Replacement
and
Adjustment

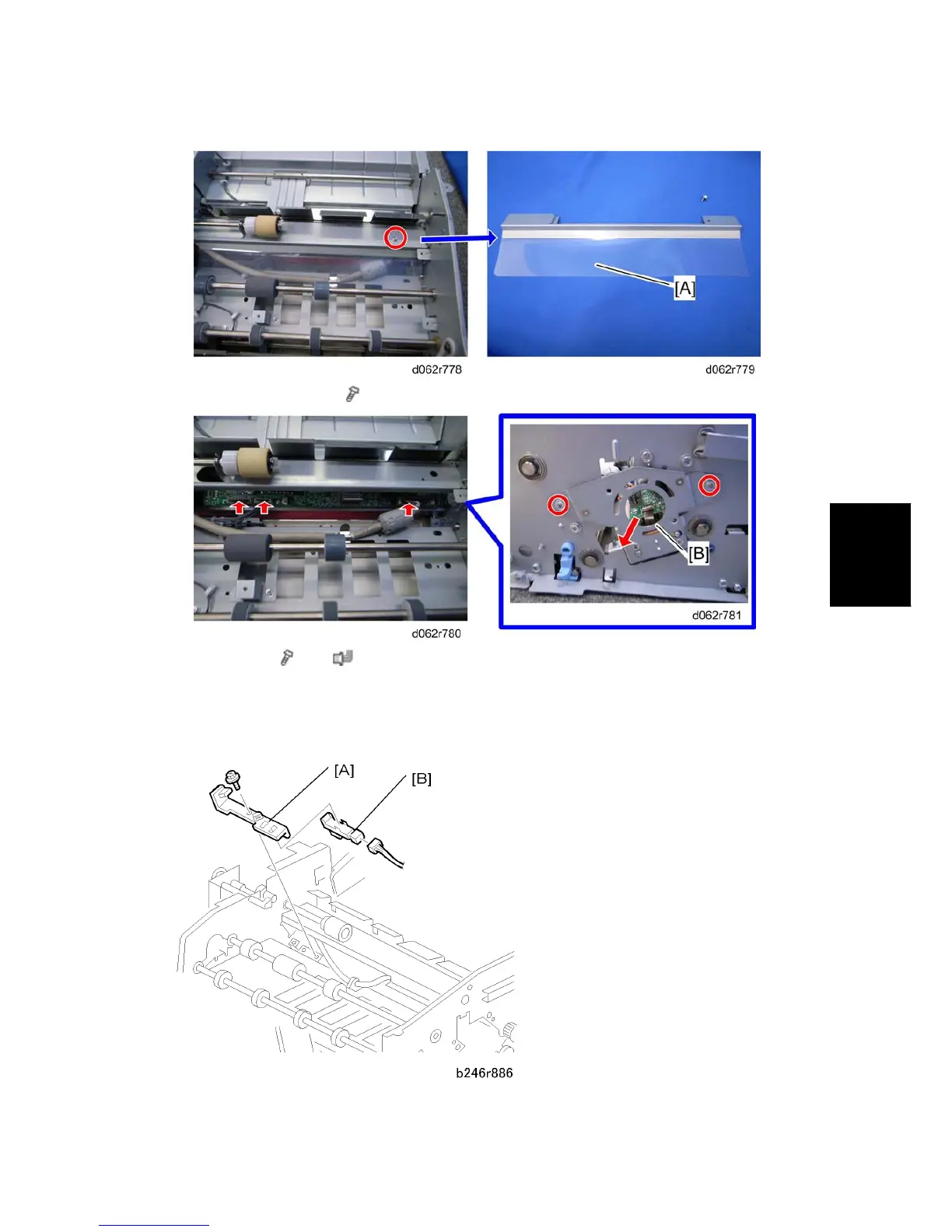

4. Guide plate mylar [A] (
x 1)
5. CIS unit [B] (
x 2, x 3)
Pull out the CIS unit carefully to avoid scratching the glass.
4.13.16 ADF EXIT SENSOR
