Booklet Stapling (B804 Only)
D373/D374 60 SM
2.6.3 BOOKLET STAPLING AND FOLDING MECHANISMS

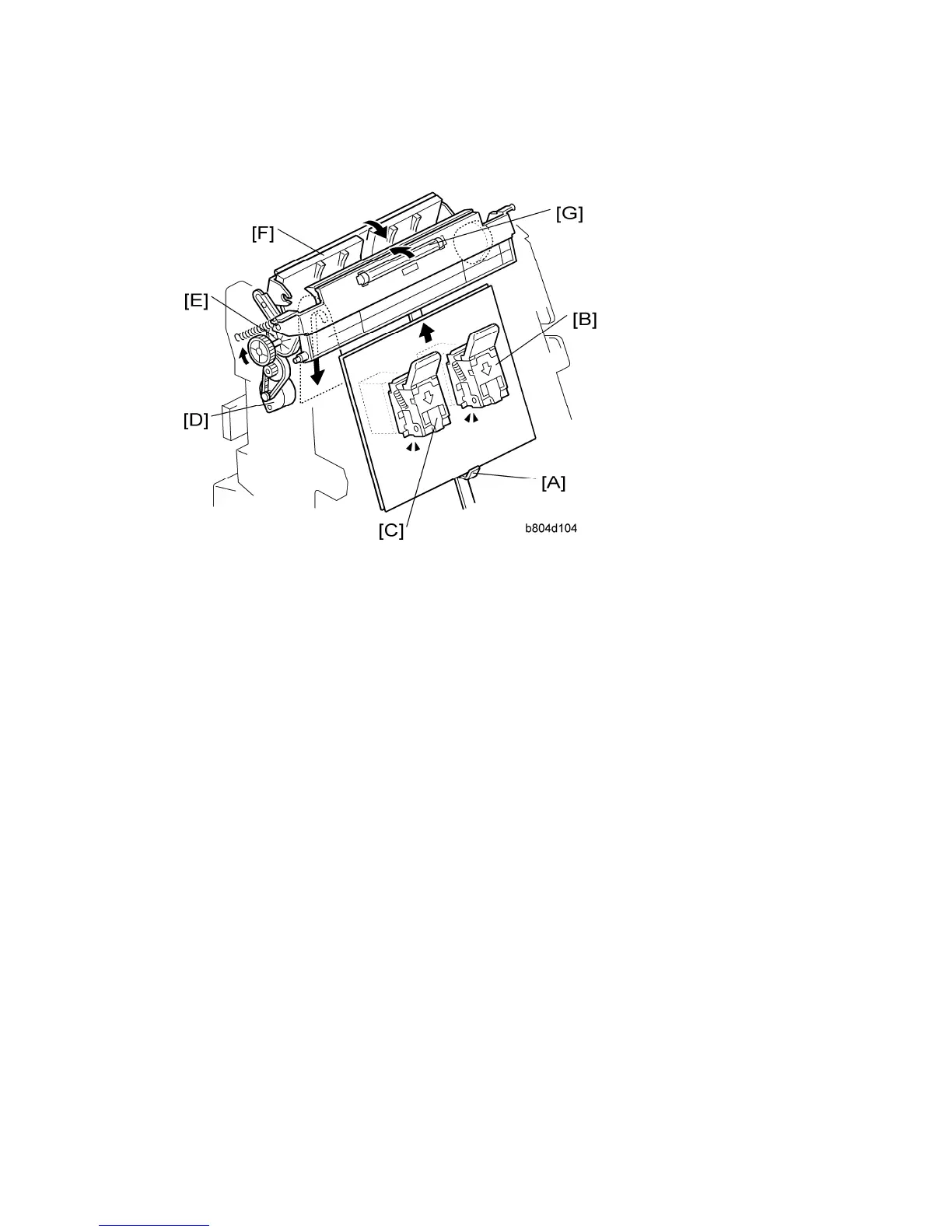

Booklet Stapler
[A]: Feed Out Belt Pawl. Raises the stack to stapling position.
[B]: Booklet Stapler EH185R – Rear
[C]: Booklet Stapler EH185R – Front
Stack Junction Gate
[D]: Stack Junction Gate Motor. Drives a timing belt and stack junction gate cam.
[E]: Stack Junction Gate Cam. Opens and closes the stack junction gate.
[F]: Stack Junction Gate. The stack junction gate motor and stack junction gate cam close
the stack junction gate. The feed out belt pawl raises the stapled stack and sends it over the
top and down to the fold unit.
[G]: Leading Edge Pressure Roller. Presses down on the leading edge of the stack after
booklet stapling.
