Timing Charts
D062/D063/D065/D066 6-14 SM
correct time.
(4):
Duplex entrance sensor ON > Inverter exit sensor does not switch OFF at the
correct time.
(5): Inverter exit sensor ON > Paper exit sensor does not switch ON at the correct time.
(6):
Duplex entrance sensor OFF > Paper exit sensor does not switch OFF at the
correct time. (Paper remains at the duplex unit exit.)

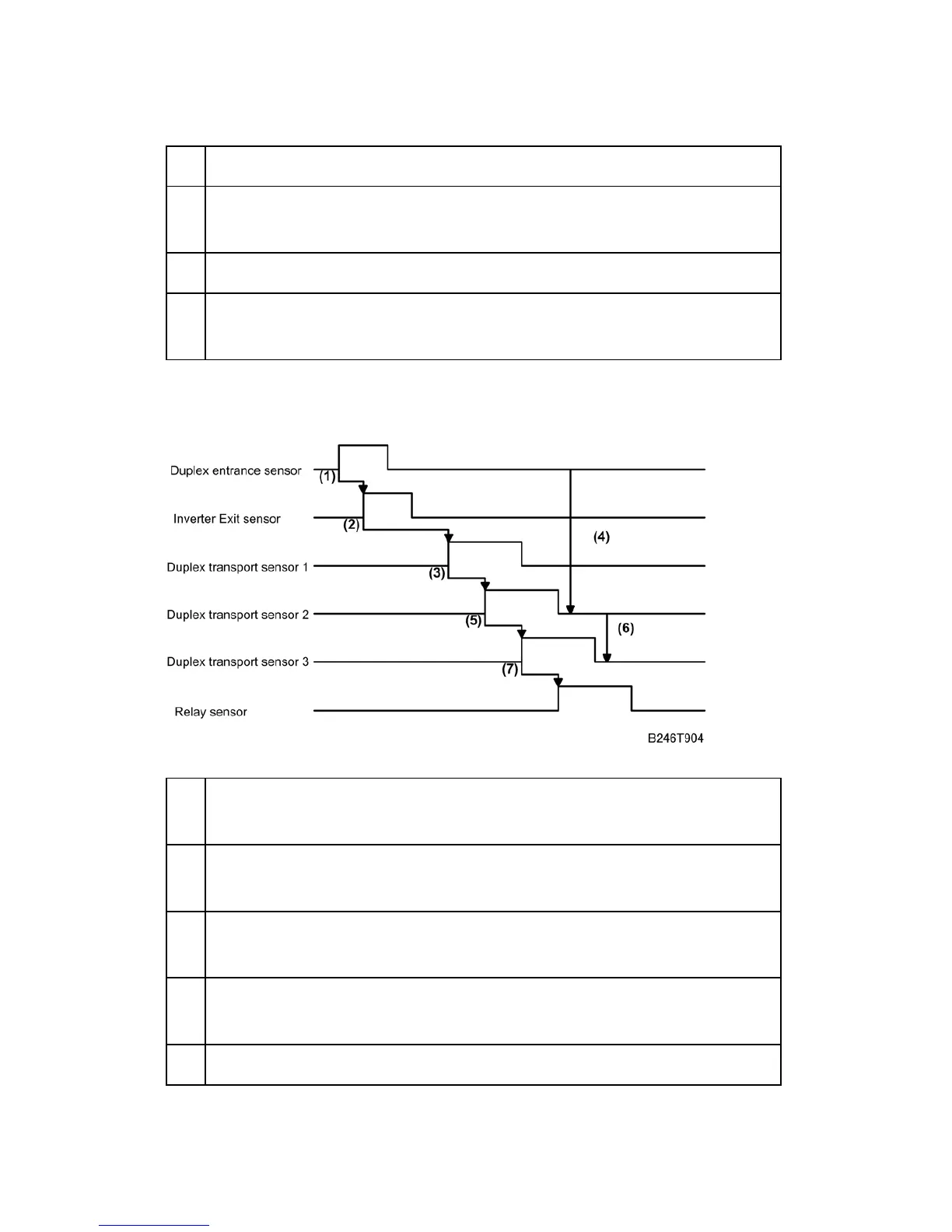

6.5.3 DUPLEX TRANSPORT
(1):
Duplex entrance sensor ON > Inverter exit sensor does not switch ON at the
correct time.
(2):
Inverter exit sensor ON > Duplex transport sensor 1 does not switch on at the
correct time.
(3):
Duplex transport sensor 1 ON> Duplex transport sensor 2 does not switch on at the
correct time.
(4):
Duplex entrance sensor ON > Duplex transport sensor 2 does not switch OFF at
the correct time.
(5): Duplex transport sensor 2 ON > Duplex transport sensor 3 does not switch ON at
To Next Page
