6.3 JOGGER UNIT PAPER POSITIONING

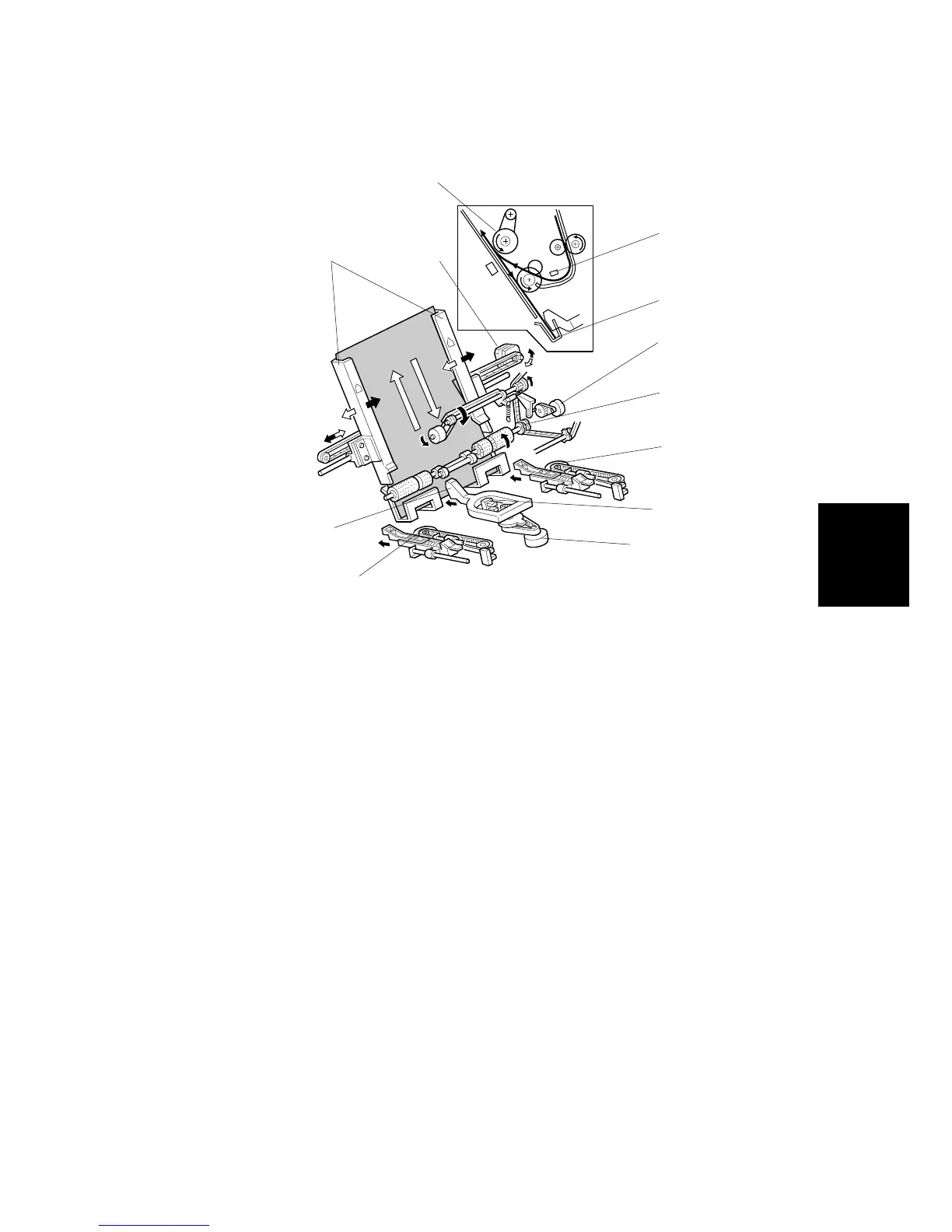

In the staple mode, as every sheet of paper arrives in the jogger unit, it is vertically
and horizontally aligned, then the staple edge is pressed flat to ensure the edge of
the stack is aligned correctly for stapling.
Vertical Paper Alignment: About 60 ms after the trailing edge of the copy passes
the staple tray entrance sensor [A], the positioning roller motor [B] is energized to
push the positioning roller [C] into contact with the paper. The positioning roller and
alignment brush roller [D] rotate to push the paper back and align the trailing edge
of the paper against the stack stopper [E].
Horizontal Paper Alignment: When the print key is pressed, the jogger motor [F]
turns on and the jogger fences [G] move to the wait position about 7.2 mm wider
than the selected paper size on both sides. When the trailing edge of the paper
passes the staple unit entrance sensor, the jogger motor moves the jogger fences
3.7 mm towards the paper. Next, the jogger motor turns on again for 3.5 mm for the
horizontal paper alignment then goes back to the wait position.
Paper Stack Correction: After the paper is aligned in the stapler tray, the left [J],
center [K], and right [L] stack plate motors switch on briefly and drive the front stack,
center stack, and rear stack plates against the edge of the stack to flatten the edge
completely against the staple tray for stapling. When the next copy paper turns on
the stapler entrance sensor, the stack plate motor turns on and returns to its home
position. The home position is detected by stack plate HP sensor [M].
B478D508.WMF
[C]
[A]
[E]
[B]
[D]
[G]
[F]
[I]
[J]
[K]
[L]
[M]
