Ricoh Aficio MP 8001 Service Manual

Drum Unit
SM 4-33 D062/D063/D065/D066
Replacement
and
Adjustment
3. Install the new drum in the OPC unit so that the powdered surface [D] faces the
cleaning blade [E].
4. Rotate the drum once clockwise [F] until it stops again at the same position.
 Never rotate the drum anti-clockwise.
4.6.6 PTL
Remove these parts:
 OPC drum (
p.4-30)

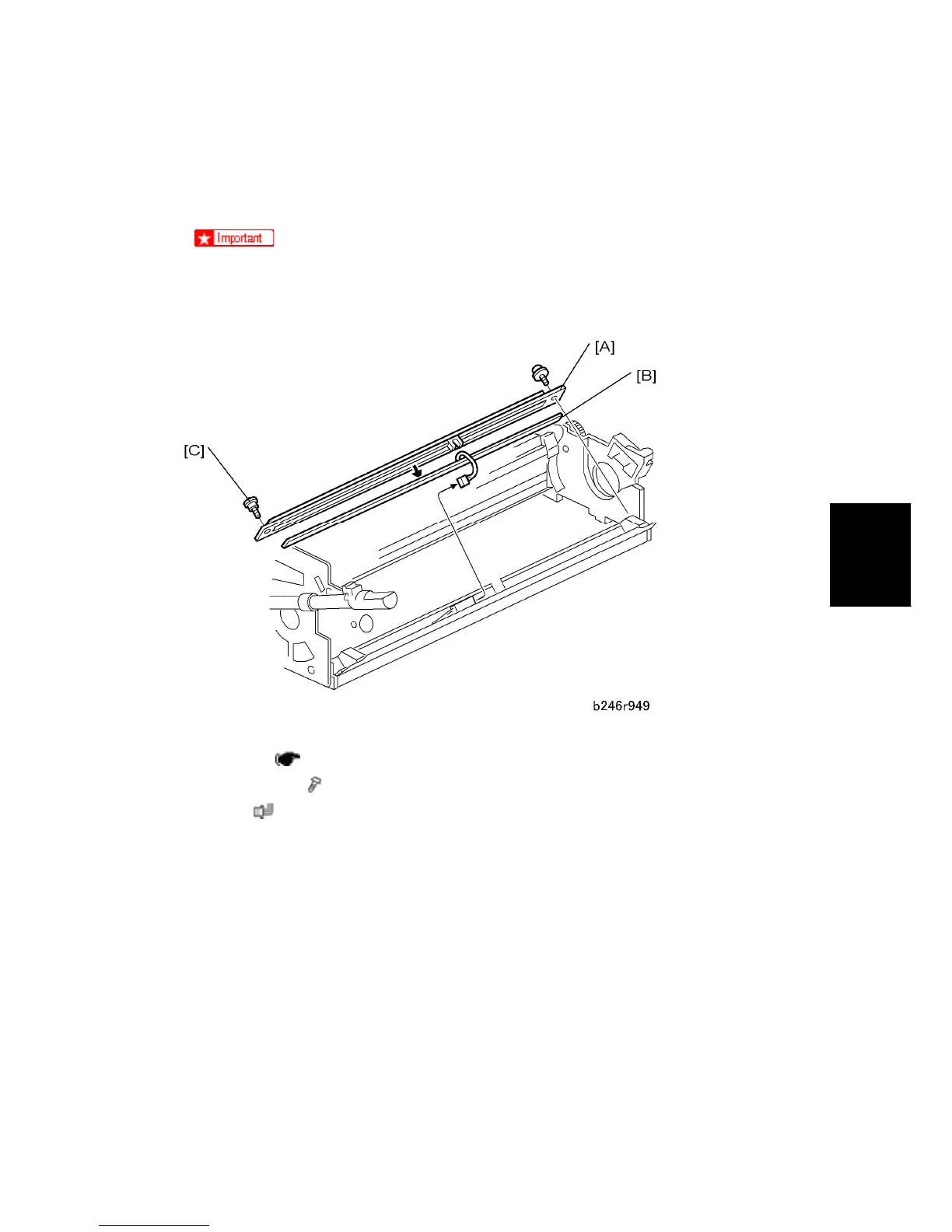

1. PTL bracket [A] (
x 2)
2. PTL [B] (
x 1)
Reinstallation
 The shoulder screw [C] must be attached again at its initial location.
