Ricoh Aficio MP 8001 Service Manual

OVERVIEW
B704 10 SM
2.1.3 PAPER SIZE DETECTION

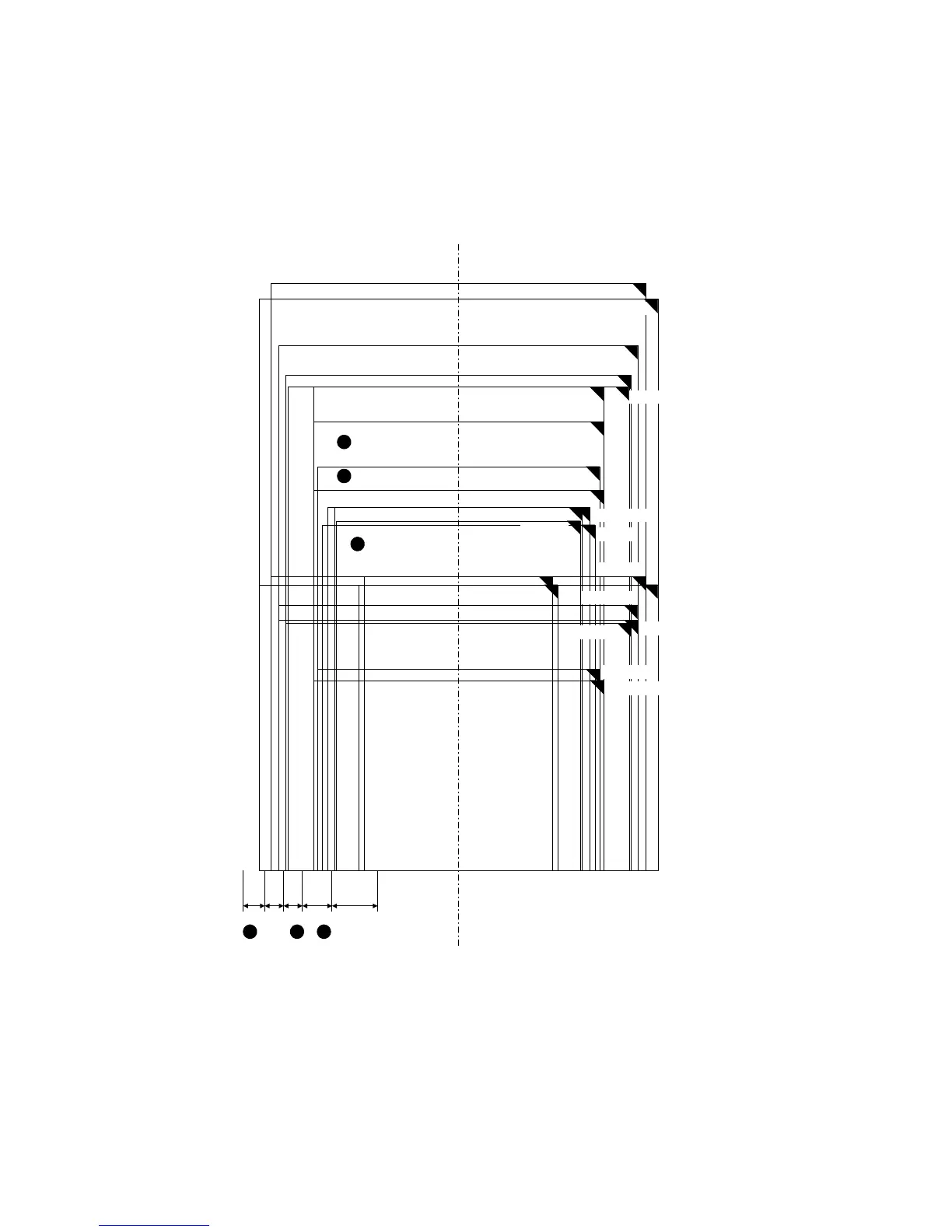

The width sensors [A] (S1, S2, S3) and length sensors [B] (S4, S5, S6) detect the
width and length of the original on the interposer feed tray.
S3
P5
S4
S5
S6
DLT SEF
S2 S1
P4 P3 P2 P1
8 K SEF
LG
10"x14"
B4 SEF
F4
A4 SEF
LT SEF
US EXE SEF
16 K SEF
8"x10"
B5 SEF
HLT SEF
A5 SEF
A3 SEF
A5 LEF
LT LEF
16 K LEF
US EXE LEF
B5 LEF
HLT LEF
B470D901.WMF
