Junction Gates
SM 41 D373/D374
Finisher
D373/D374

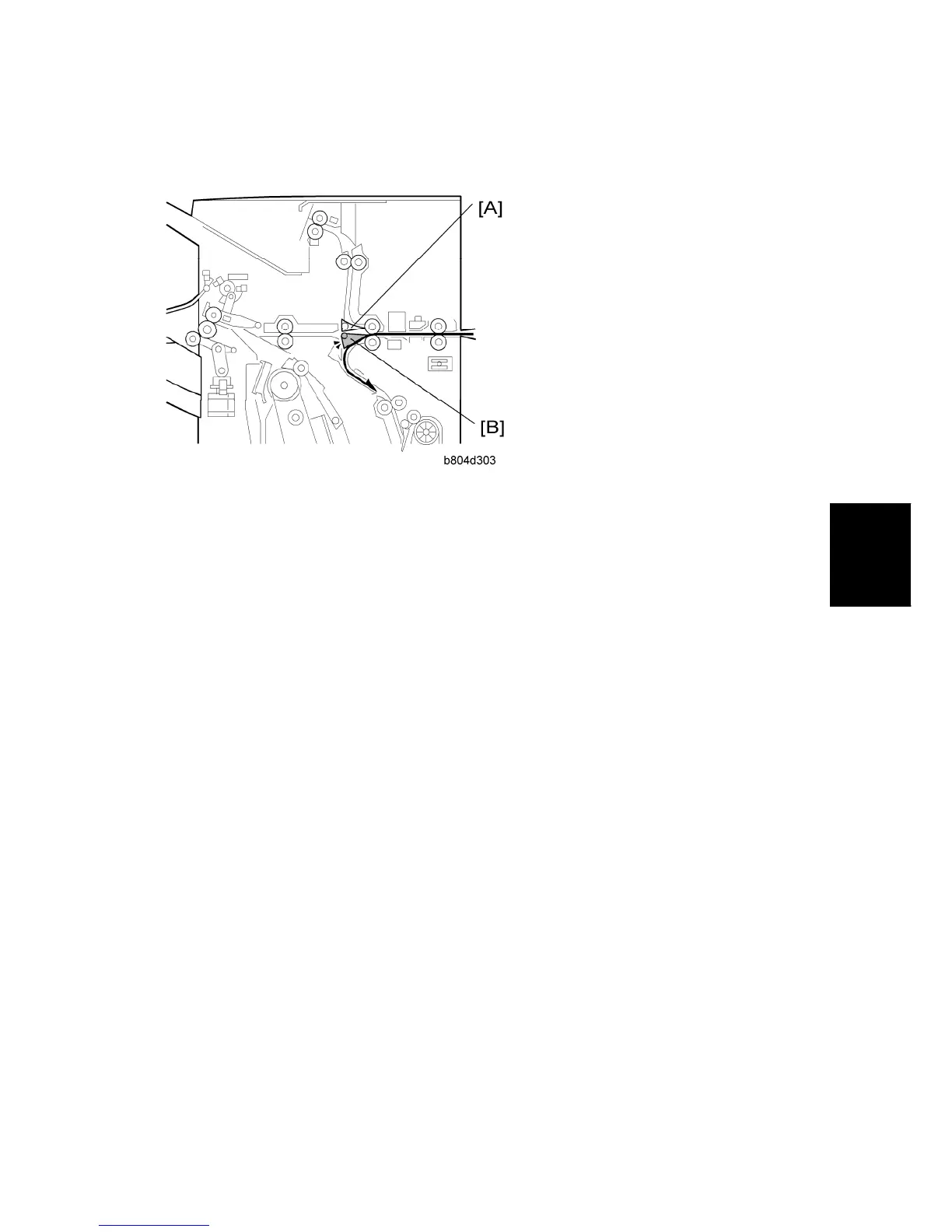

2.2.3 STAPLE MODE
Proof tray junction gate [A] remains closed. Staple tray junction gate [B] opens
The staple tray junction gate directs the paper to the staple tray below for jogging and
stapling.
