Drum Unit
D062/D063/D065/D066 4-30 SM

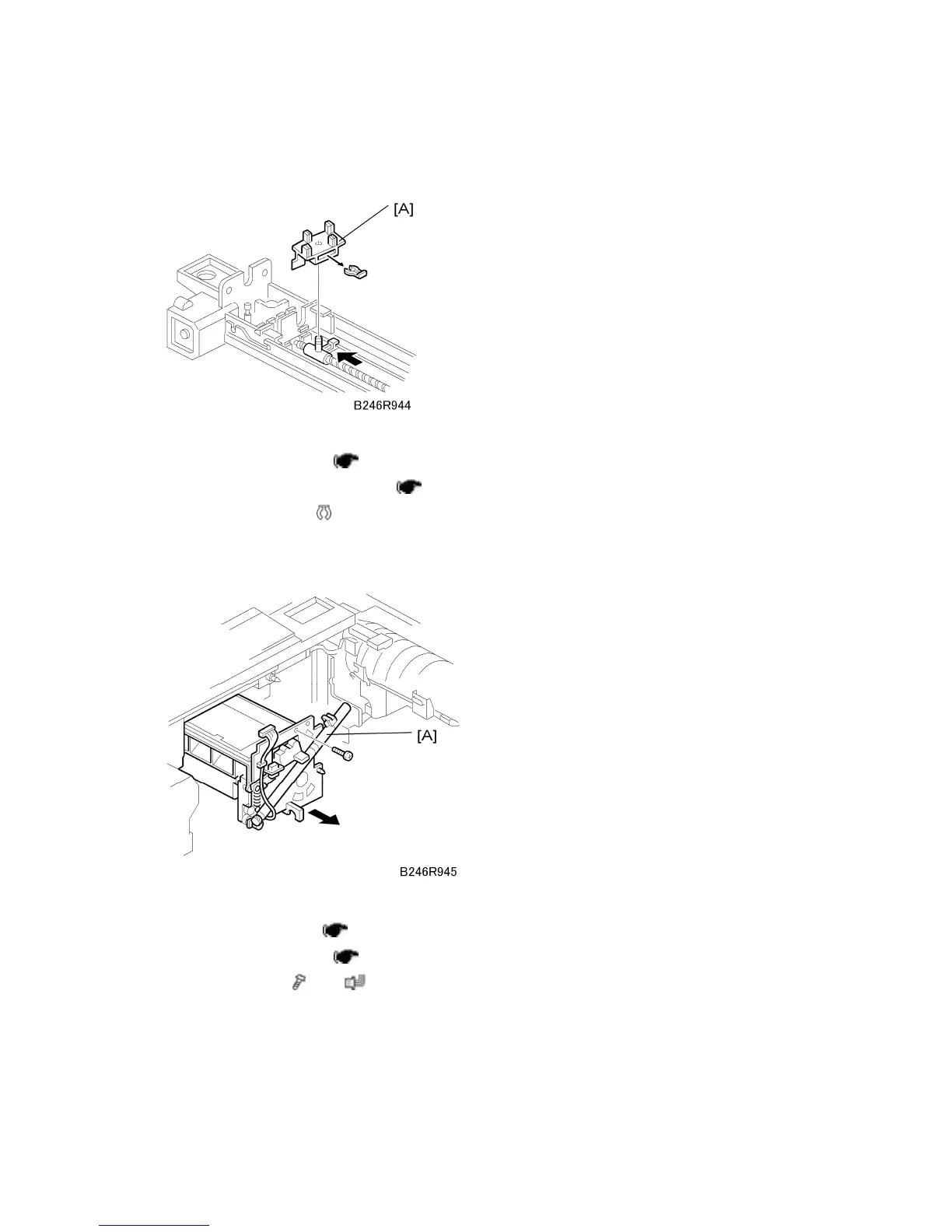

4.6.4 CHARGE CORONA WIRE CLEANING PADS
Remove:
Charge corona unit (
p.4-28).
Charge corona wire and grid (
p.4-28)
1. Cleaning pad [A] (
x 1)
4.6.5 OPC DRUM REMOVAL
Remove
Development unit (
p.4-25).
Charge corona unit (
p.4-28).
1. Drum unit [A] (
x 1, x 2)
Grasp the drum unit by the knob to remove it from the machine.
