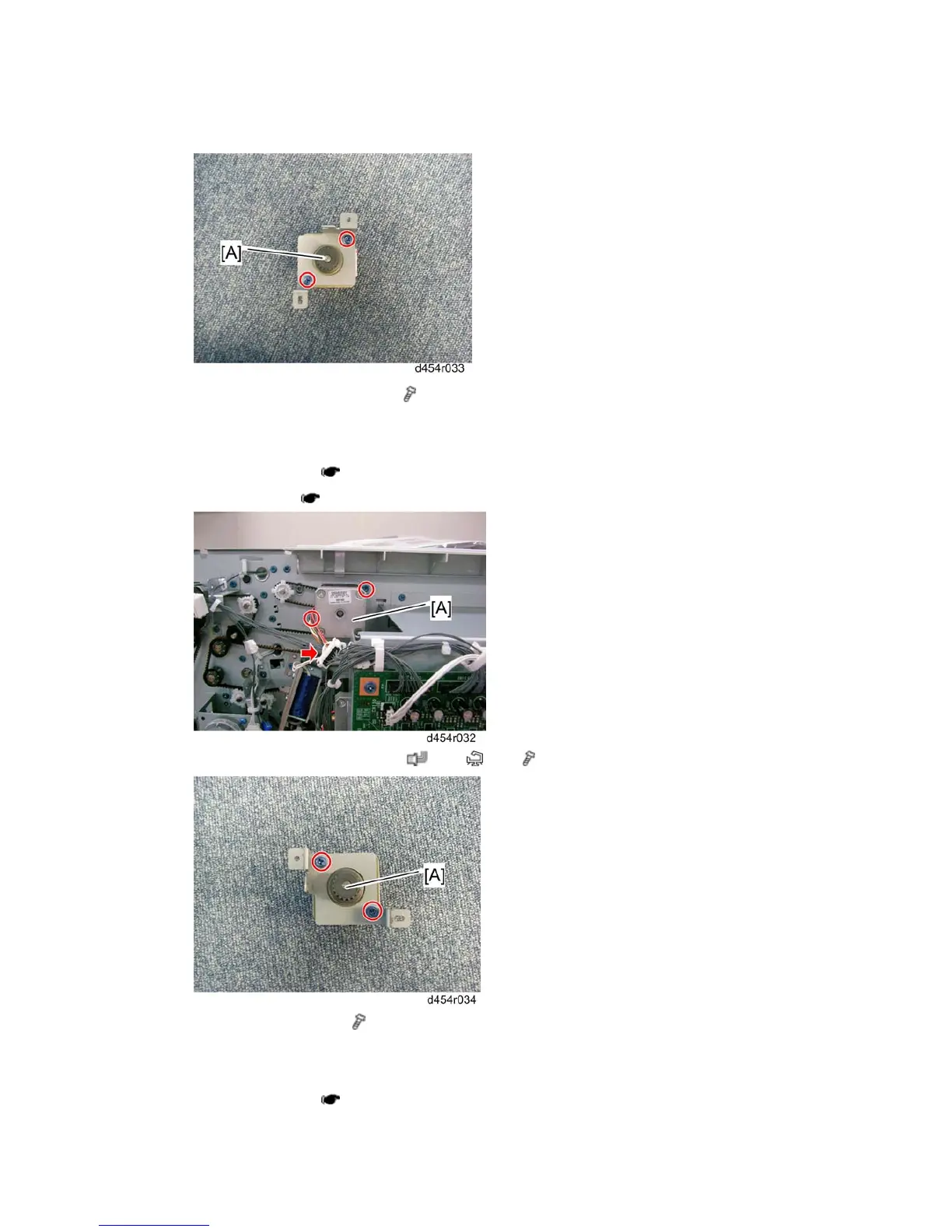

Replacement and Adjustment
D454 8 SM
4. Horizontal transport motor [A] (
x 2)
1.2.3 TOP TRAY EXIT MOTOR
1. Rear upper cover ( p.4)
2. Top rear cover (
p.5)
3. Top tray exit motor bracket [A] (
x 1, x 1, x 2)
4. Top tray exit motor [A] (
x 2)
1.2.4 TOP TRAY TRANSPORT MOTOR
1. Rear upper cover ( p.4)
