Ricoh Aficio MP 8001 Service Manual

Component Layout
D373/D374 38 SM
No. Component Function
Switches
SW1
Front Door Safety
Switch
The safety switch cuts the dc power when the front door
is opened.
SW2 Upper Tray Limit SW
A micro-switch cuts the power to the upper tray lift motor
when the upper tray reaches its upper limit. This switch
duplicates the function of the upper tray limit sensor
(S12) and stops the upper tray if S12 fails.

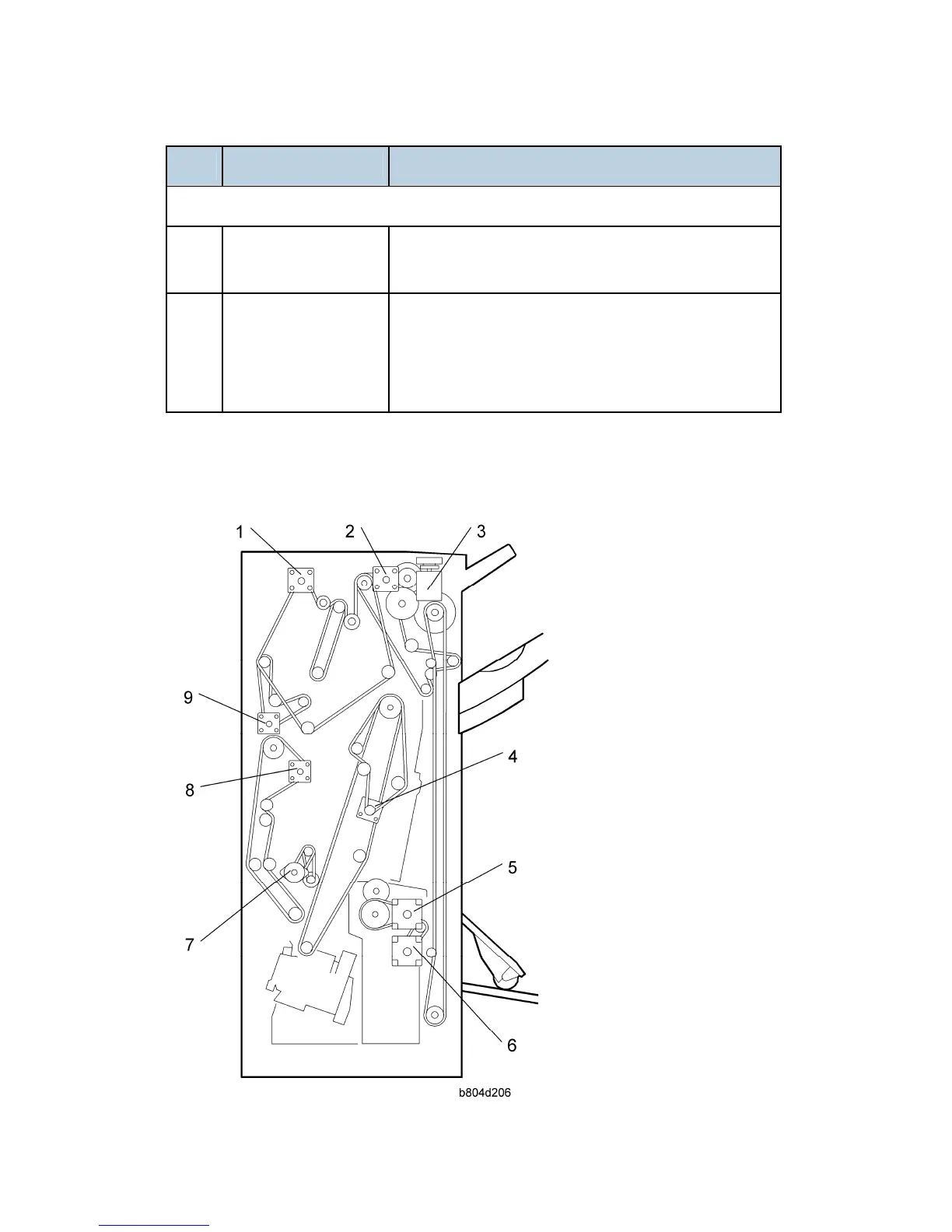

2.1.4 DRIVE LAYOUT
