Ricoh Aficio MP 8001 Service Manual

PCBs and HDD
SM 4-109 D062/D063/D065/D066
Replacement
and
Adjustment

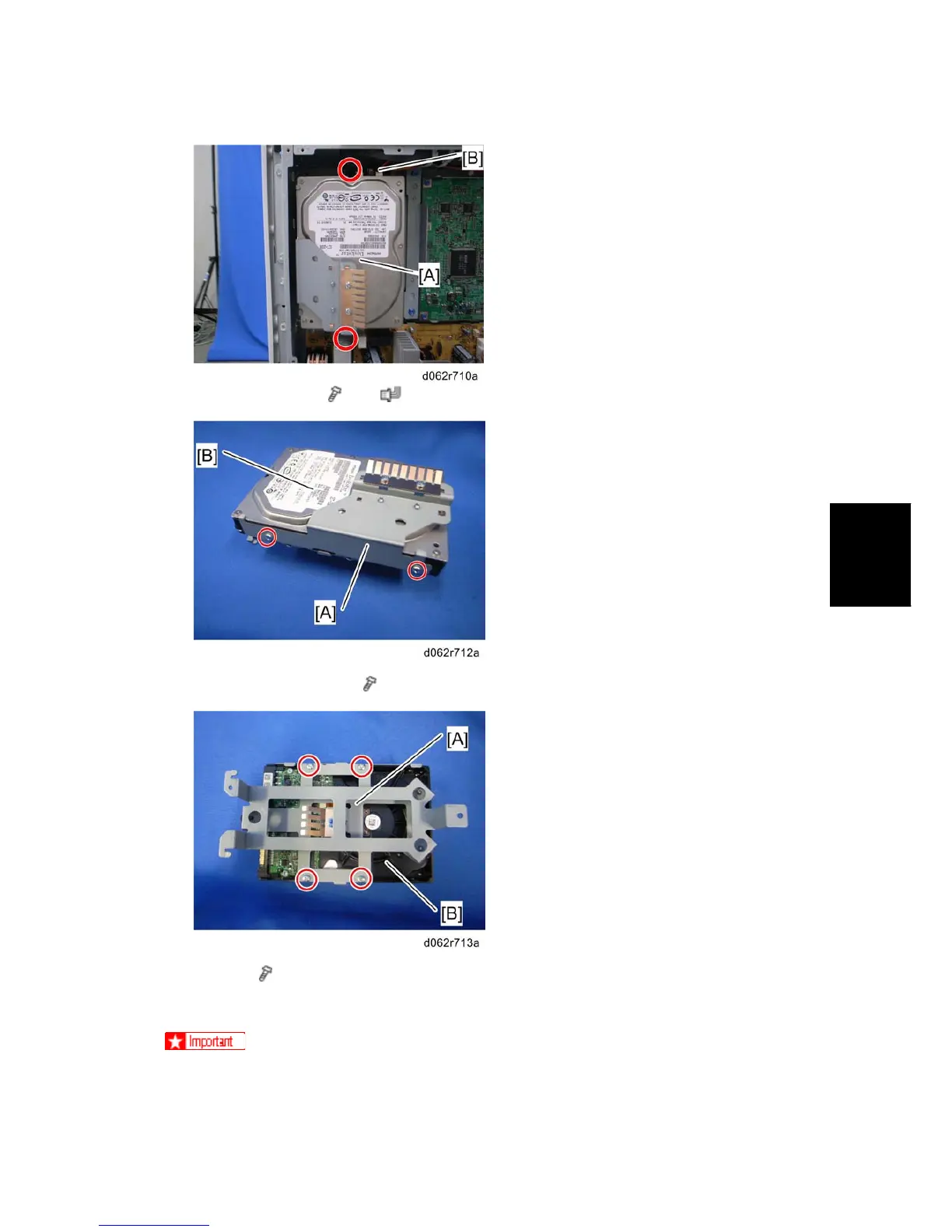

2. HDD assembly [A] (
x 2, x 2 [B])
3. Remove the bracket [A] (
x 2) from the HDD assembly [B]
4. HDD [B] (
x 4)
Reinstallation
 Explain to the customer that the following information stored on the HDD is lost
when the HDD is replaced:
