Component Layout
D373/D374 22 SM
2. DETAILED SECTION DESCRIPTIONS
2.1 COMPONENT LAYOUT

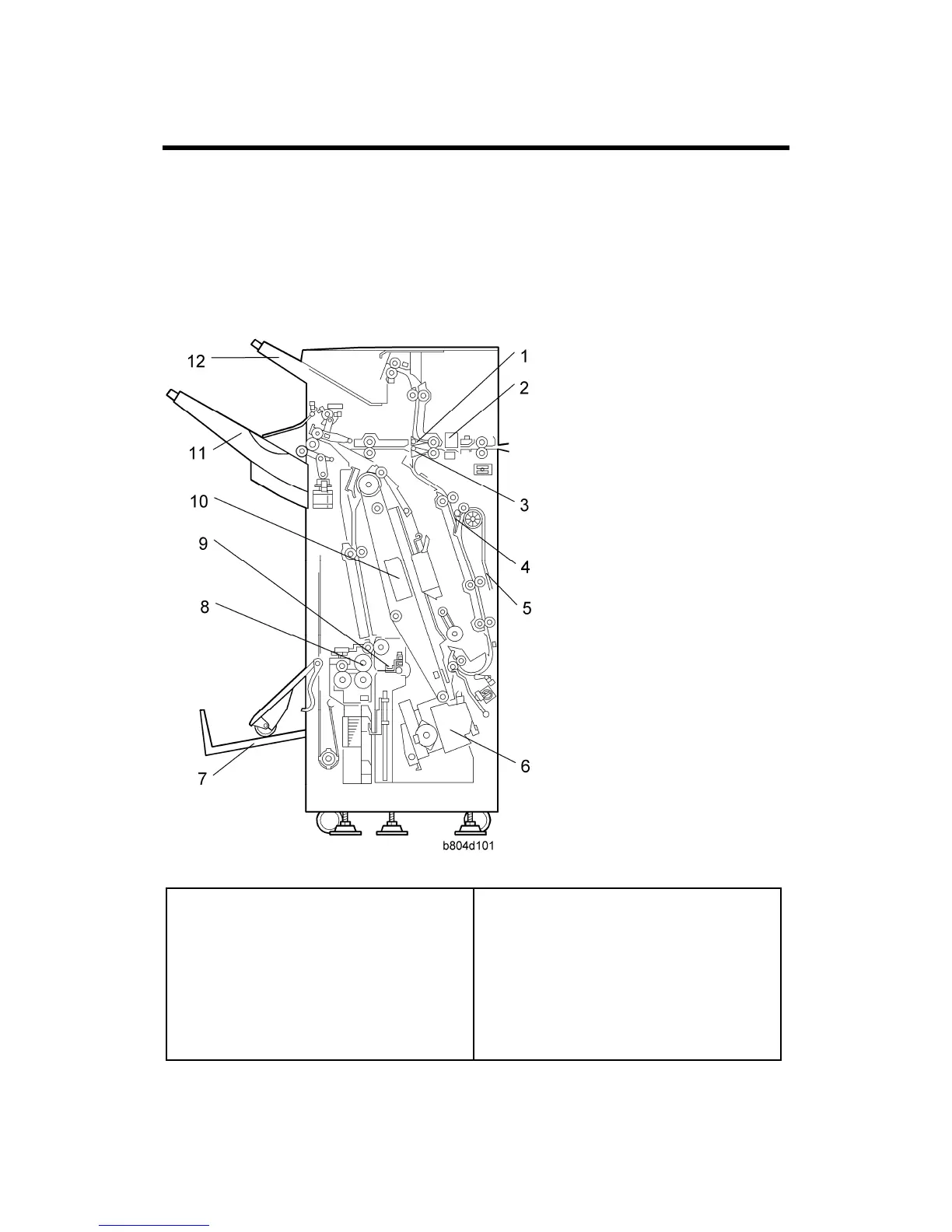

2.1.1 GENERAL LAYOUT
1. Proof Tray Junction Gate
2. Punch Unit
3. Stapler Junction Gate
4. Pre-Stack Junction Gate
5. Pre-Stack Tray
6. Corner Stapler (M20)
7. Lower Tray (Booklet)*
1
8. Folder Rollers*
1
9. Folder Plate*
1
10. Booklet Stapler*
1
11. Upper Tray (Shift)
12. Proof Tray
