Ricoh Aficio MP 8001 Service Manual

Details
D454 90 SM

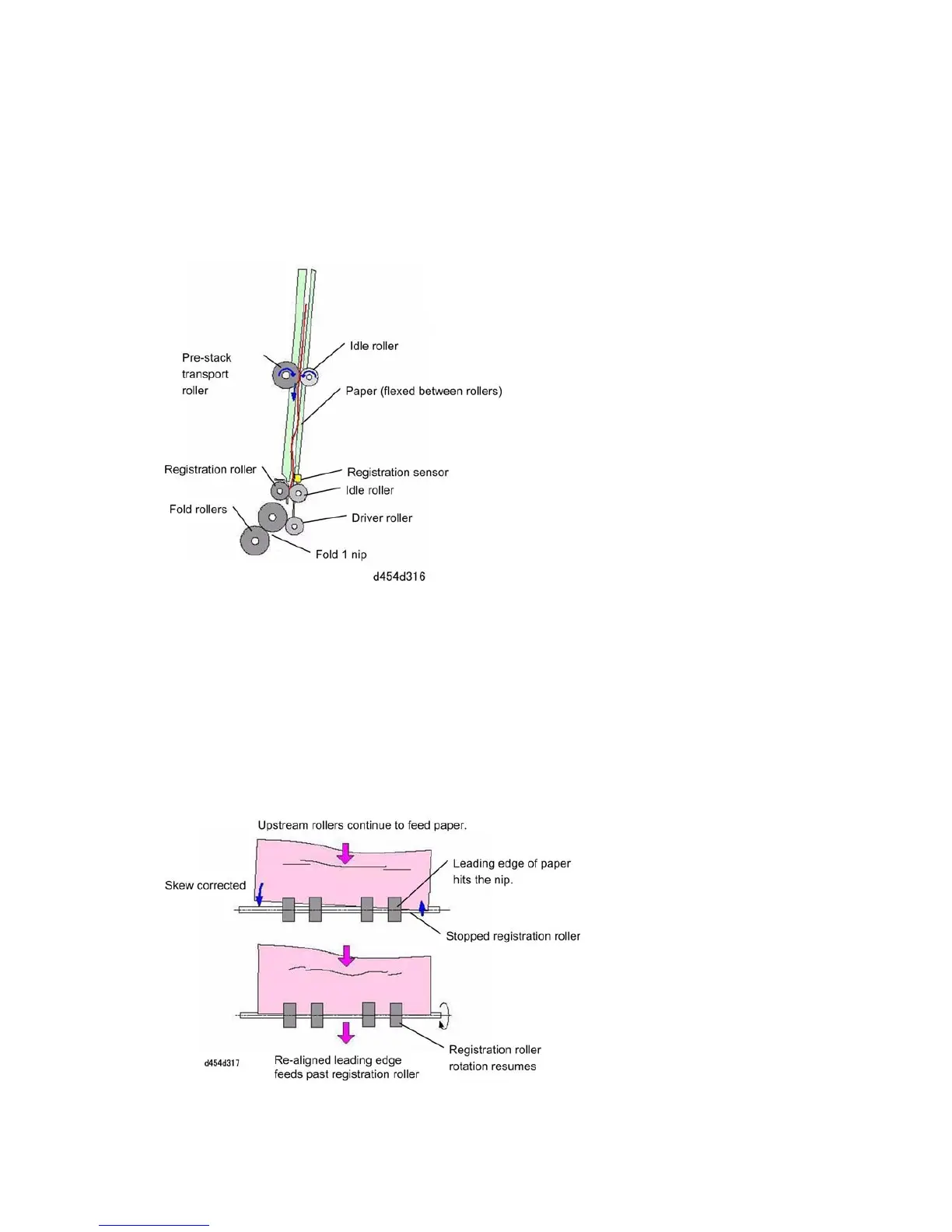

2.2 PAPER PATH
2.2.1 PAPER REGISTRATION
When paper is fed to the pre-stacker, the position of each sheet in the paper path is adjusted
to correct skew:
 Leading edge of the sheet hits the registration roller and stops.
 The upstream rollers continue to rotate 5 mm.
 The leading edge of the paper buckles against the stationary registration roller to correct
skew.
 The registration roller starts rotating again after the paper has been straightened in the
paper path.
