ADF
SM 4-121 D062/D063/D065/D066
Replacement
and
Adjustment

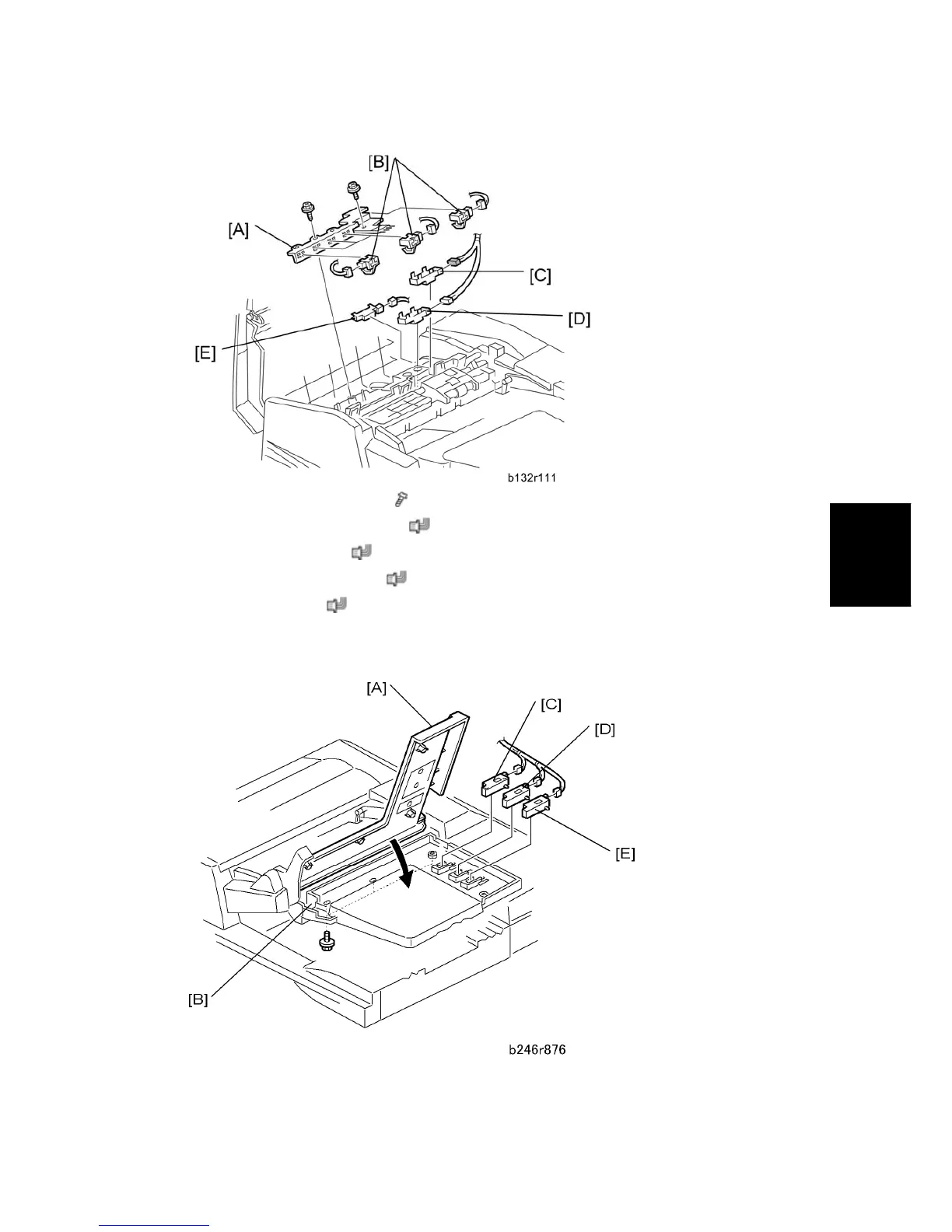

3. Width sensor guide plate [A] (
x 2)
4. Original width sensors [B] (x 5,
x 5)
5. Separation sensor [C] (
x 1)
6. Skew correction sensor [D] (
x 1)
7. Interval sensor [E] (
x 1)
4.13.8 ORIGINAL LENGTH SENSORS
1. Open the original tray [A].
