3000-Sheet Finisher (D460)
D062/D063/D065/D066 2-44 SM

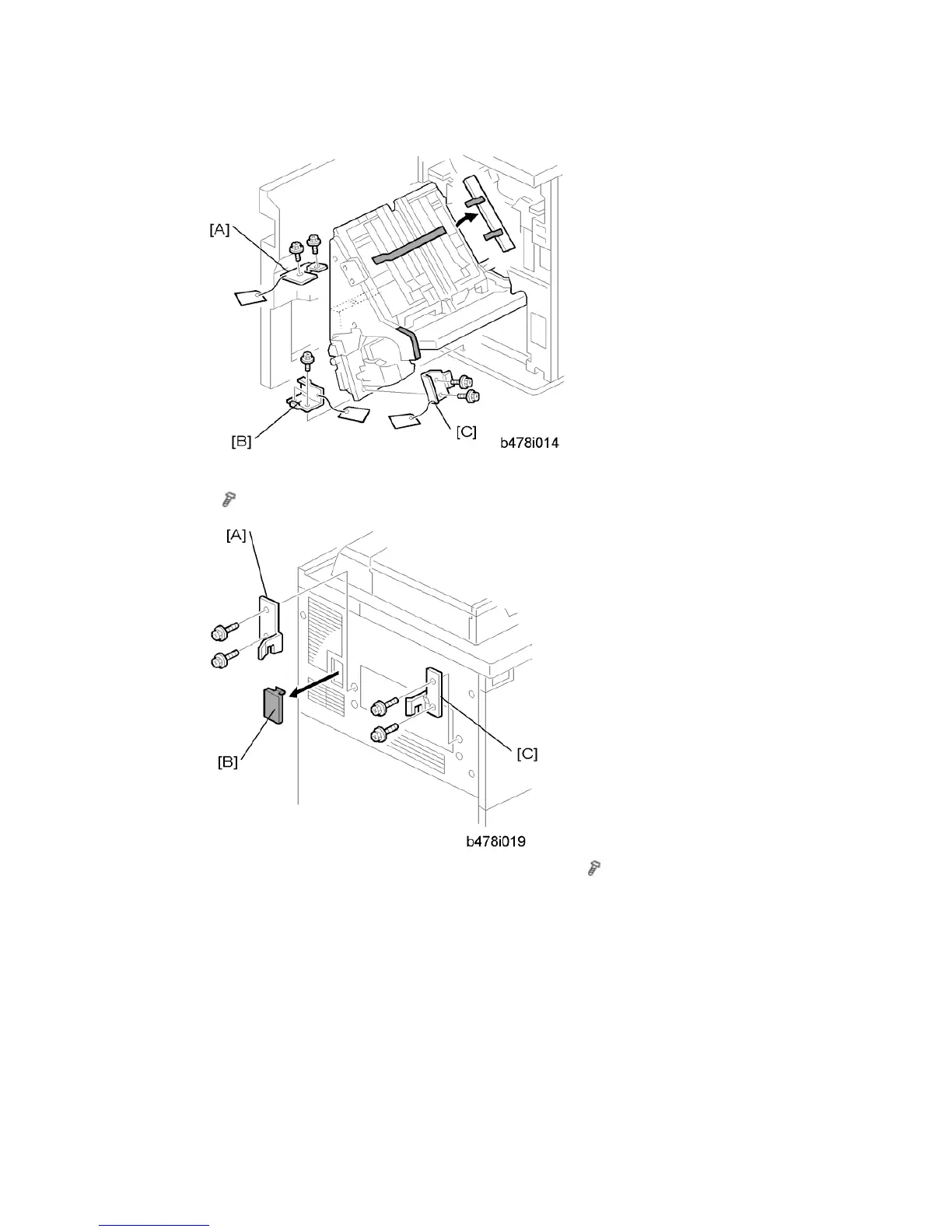

2. Open the front door and remove the shipping retainers. Remove brackets [A], [B], and
[C] (
x 2 each).
3. Install the front rear bracket [A] and front joint bracket [B] (
x 2 each) (M4 x 14) on
the left side of the copier.
4. Remove the connector cover [C].
