Video Data Path
D361/D510 202 SM
5.3 VIDEO DATA PATH
5.3.1 TRANSMISSION

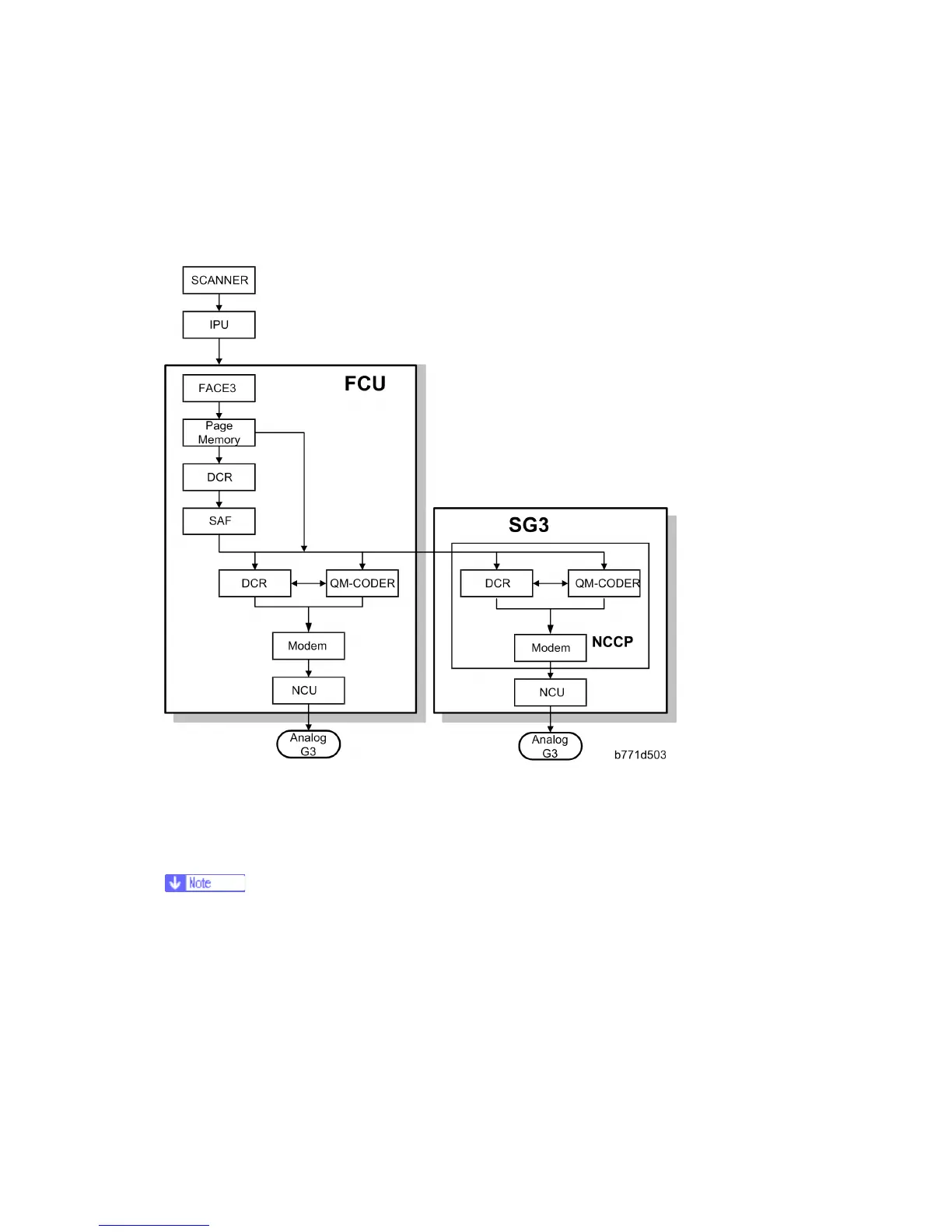

Memory Transmission and Parallel Memory Transmission
The base copier's scanner scans the original at the selected resolution in inch format. The
IPU processes the data and transfers it to the FCU.
 When scanning a fax original, the IPU uses the MTF, independent dot erase and
thresholding parameter settings programmed in the fax unit's scanner bit switches,
not the copier's SP modes.
