Scanner Unit
D017/D018/D019/D020/D084/D085 4-5 SM
Replacement
and
Adjustment
4.3 SCANNER UNIT
4.3.1 EXPOSURE GLASS

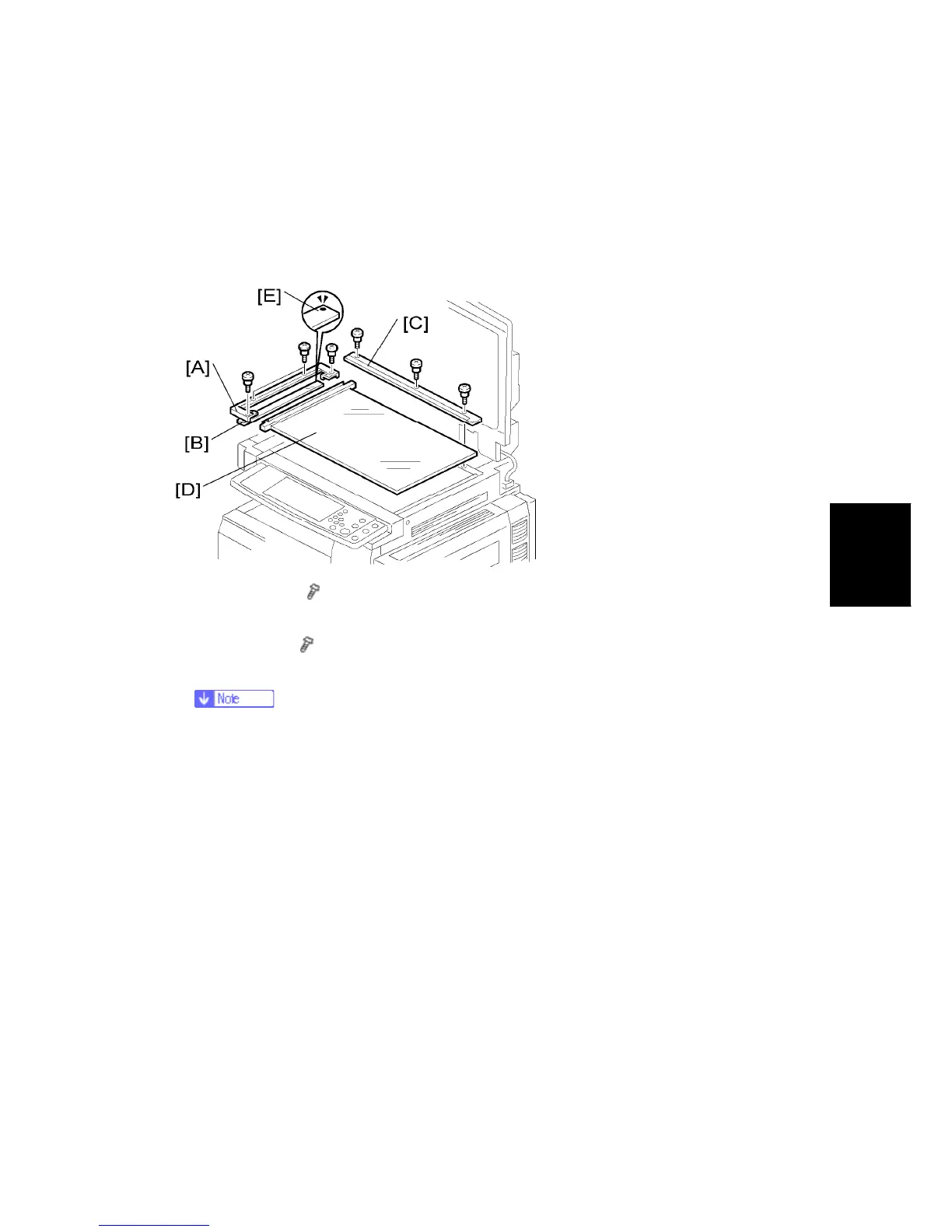

1. Glass cover [A] ( x 4)
2. ARDF exposure glass [B]
3. Rear scale [C] (
x 3)
4. Exposure glass with left scale [D]
 Position the white marker [E] at the rear-left corner and the blue marker at the
front-left corner when you reattach the ARDF exposure glass.
