Motors
SM 9 D372
500-Sheet
Finisher
D372
1. Remove the motor bracket [A] ( x2, x1)

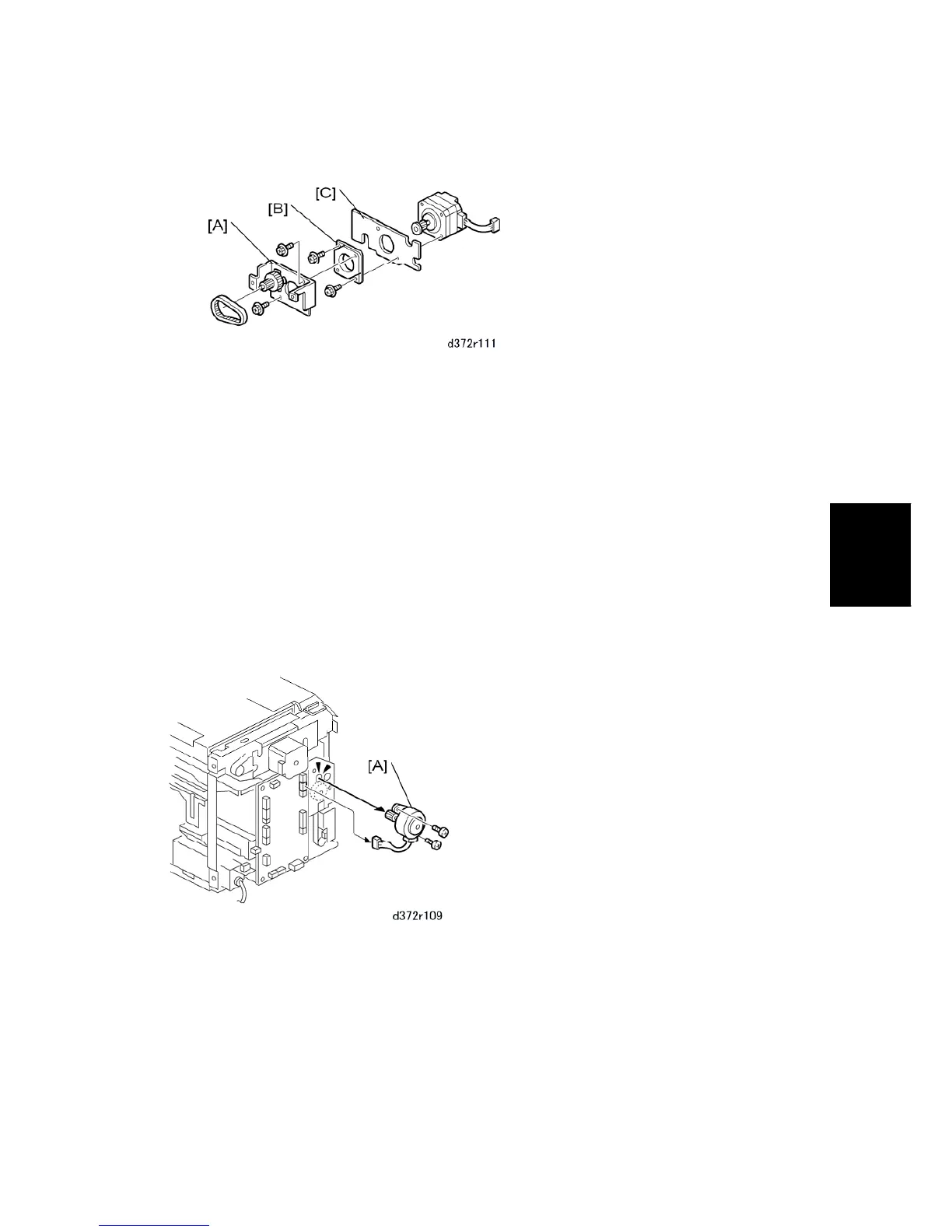

2. Remove:
[A] 1st bracket (Timing belt x1, x2)
[B] 2nd bracket (x2)
[C] 3rd bracket
Reinstallation
After reattaching the motor, rotate its drive gear and confirm that the timing belt is set
correctly.
Rotate the motor drive gear by hand and confirm that these rollers are turning: 1)
entrance roller, 2) positioning roller, and 3) return rollers. (The return rollers are the two
small sponge rollers below the positioning roller.)
1.3.3 POSITIONING ROLLER ARM MOTOR
Preparation
Disconnect the finisher.
Remove the finisher from the side of the machine.
Remove the rear cover.
1. Remove the positioning roller arm motor [A] ( x2, x1).
To Next Page
