Jogging (Paper Alignment)
SM 29 D372
500-Sheet
Finisher
D372
Wide and Small Paper Sizes

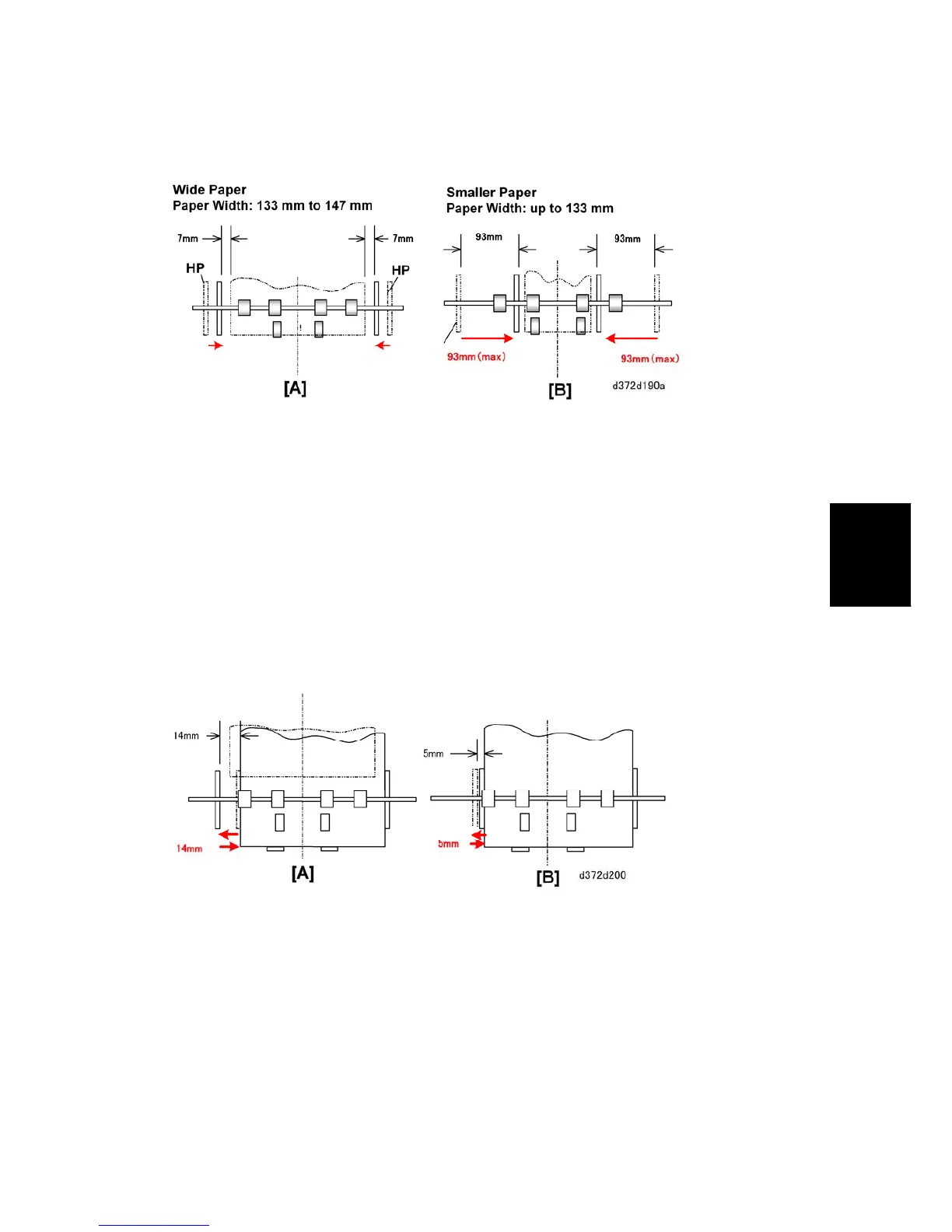

Every time a wide sheet [A] is fed, the front fence and rear fence both push against the
sides of the stack within the space of 7 mm on each side.
Every time a smaller sheet [B] is fed, the front fence and rear fence both push against the
sides of the fence with the space of 93 mm on each side.
Staple Mode
The operation of the side fences is slightly different, depending on the type of stapling
selected for the job:
 One staple (front/oblique, front/straight, rear/oblique, rear straight)
 Two staples at two positions
Staple Mode: 1 Staple
In the One-Staple Mode, one side fence jogs one side of the stack. The diagram above
illustrates the operation of the side fences for stapling at one position (front/oblique,
front/straight, rear/oblique, or rear/straight).
 Every time a sheet [A] is fed, the front fence pushes the sheet against the rear fence,
which does not move.
 After the last sheet [B] is pushed against the rear fence, the front fence moves front to
back twice (5 mm) to align the side of the stack for stapling.
Staple Mode: 2 Staples
