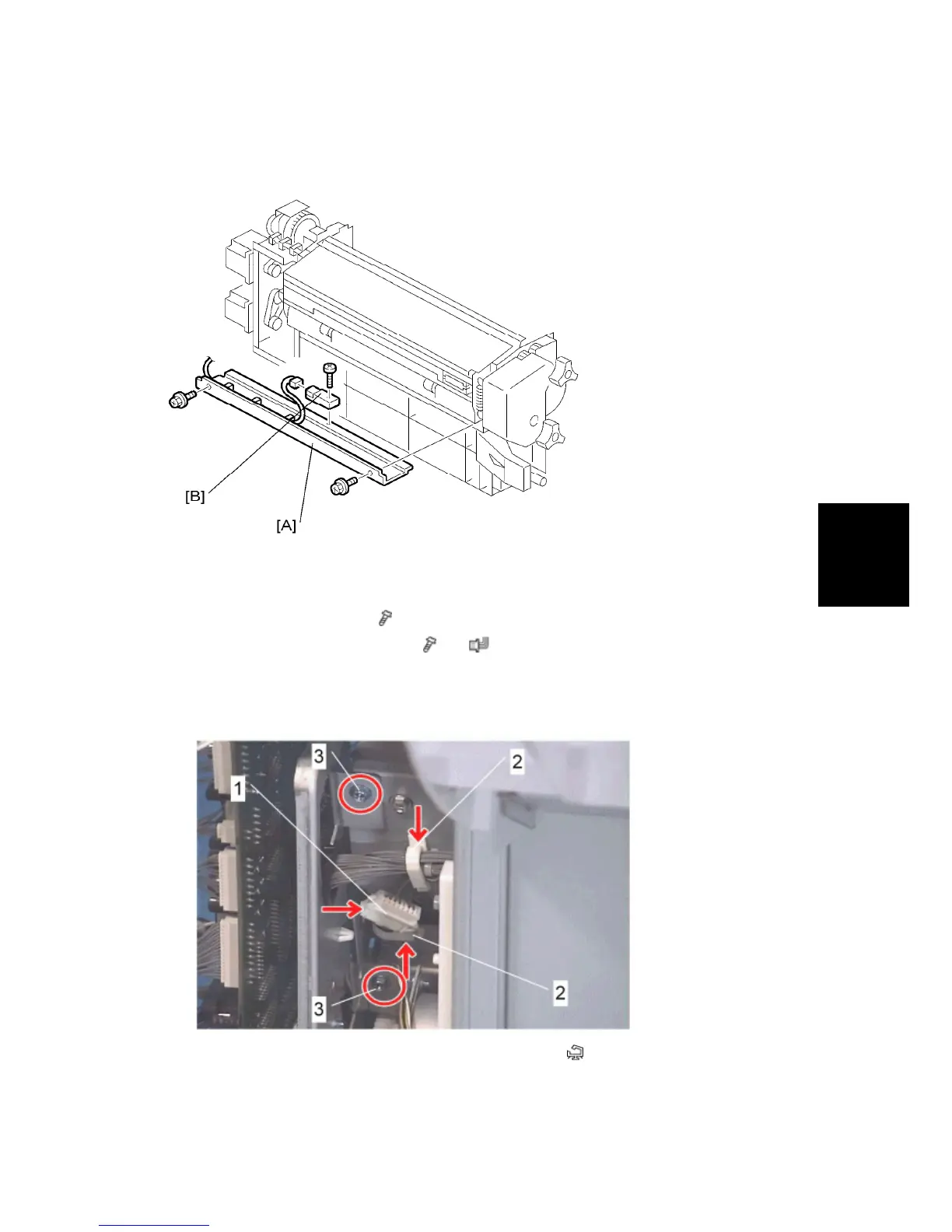

1.3.4 FOLDER UNIT ENTRANCE SENSOR
1. Open the front cover.
2. Pull out the staple folder unit.
3. Remove the exit cover [A] (
x 2).
4. Remove the entrance sensor [B] (
x 1, x 1).
1.3.5 STAPLER UNIT
1. Remove the rear cover.
2. Disconnect the connector [1] and release the harness (
x 2 [2]).
3. Remove two screws [3].
