PAPER FEED CLUTCH AND RELAY CLUTCH
SM 15 B391
Large
Capacity Tray
B391

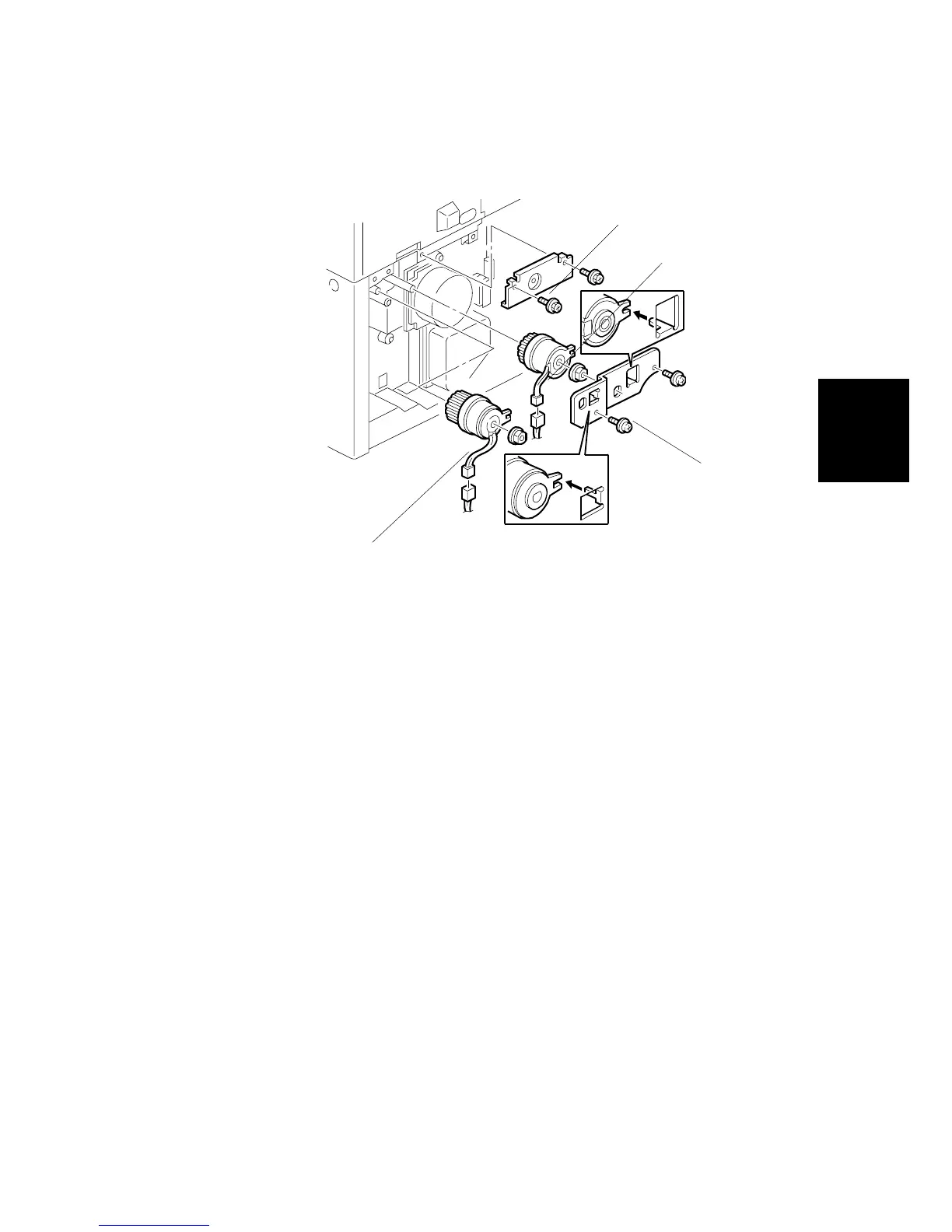

3.7 PAPER FEED CLUTCH AND RELAY CLUTCH
1. Remove the rear cover.
2. Remove bracket #1 [A] (2 screws).
3. Remove bracket #2 [B] (2 screws).
4. Remove all bushings.
5. Remove the paper feed clutch [C] and relay clutch [D].
6. Replace the required clutch.
NOTE: Make sure to properly secure both clutches before completing installation.
B391R108.WMF
[A]
[D]
[B]
[C]
