Ricoh D017 User Manual

Paper Feed
D017/D018/D019/D020/D084/D085 4-49 SM
Replacement
and
Adjustment
4.8.6 REGISTRATION CLUTCH
1. Remove the connector cover and the rear cover. ( p.4-48 "Paper Tray Lift Motors")
2. Remove the duplex connector cover and lower rear cover. (
p.4-48 "Paper Tray Lift
Motors")

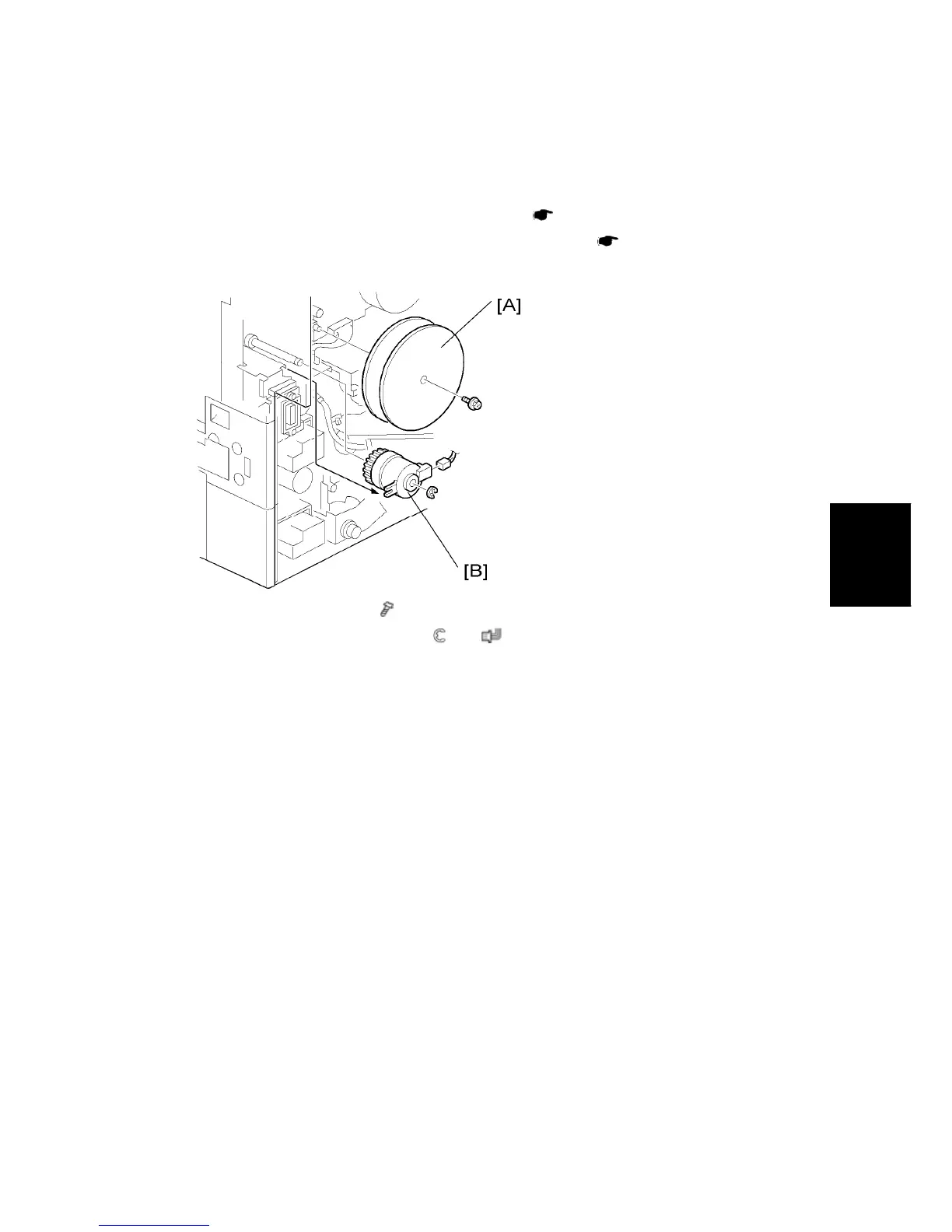

3. Remove the fly wheels [A] (
x1).
4. Remove the registration clutch [B] (
x1, x1).
