Installation
D361/D510 14 SM
G3 Interface Installation
1. If the fax unit is already installed in the machine, remove:
 Application (plastic) cover (
x1)
 FCU (
x3)

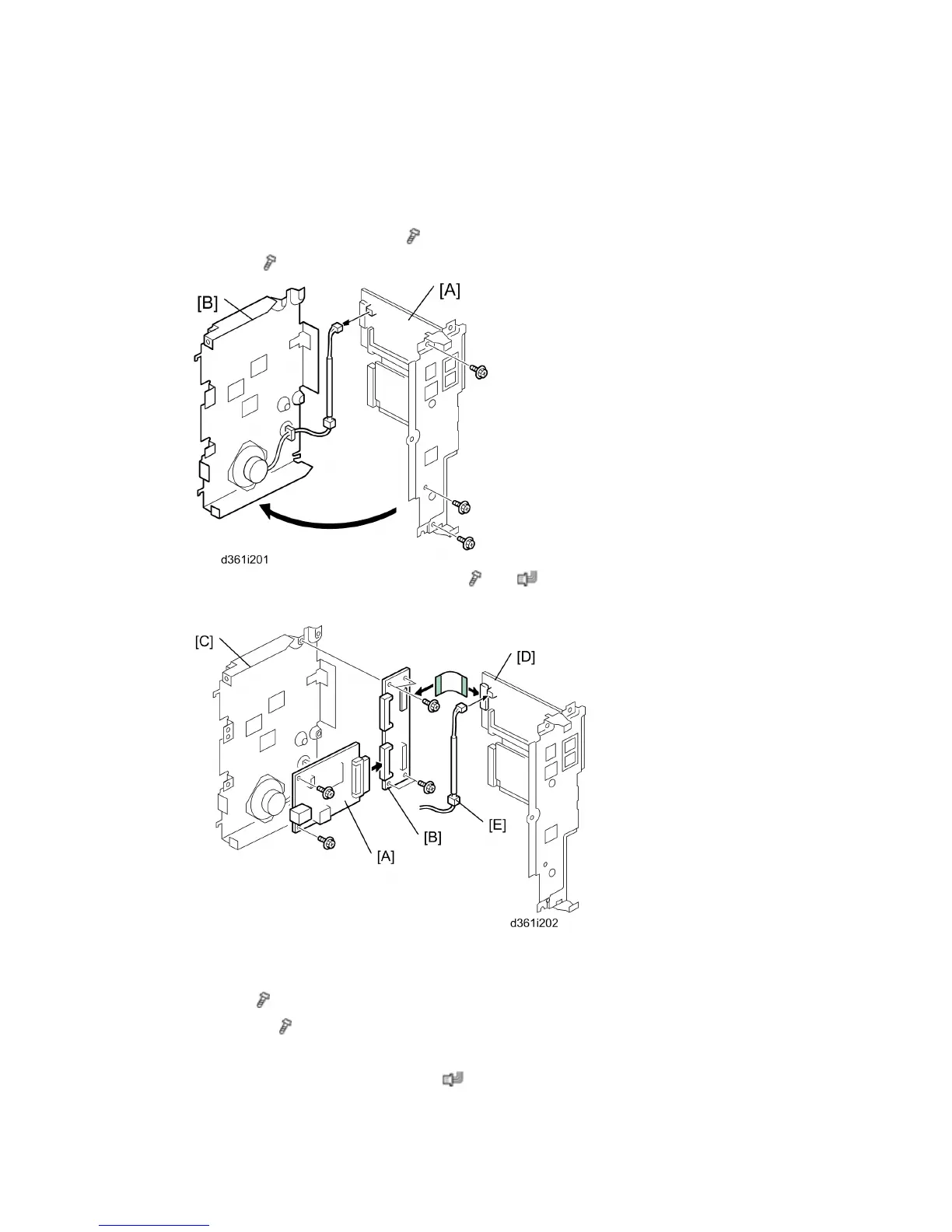

2. Separate the FCU [A] from its cover [B] (
x3, x1).
One G3 Unit
3. Connect the G3 interface unit [A] and CCUIF [B] (edge connector).
 Fasten the connected G3/CCUIF to the cover [C].
 G3: (
x2)
 CCUIF (
x4)
4. Connect the FCU [D] and CCUIF [B] (FFC x1).
5. Reconnect the speaker harness [E] (
x1)
