Paper Feed
SM 4-56 D017/D018/D019/D020/D084/D085
4.8.11 UPPER, LOWER RELAY SENSORS
1. Remove:
 Right cover
-or-
 Duplex unit if it is installed (See the previous section)

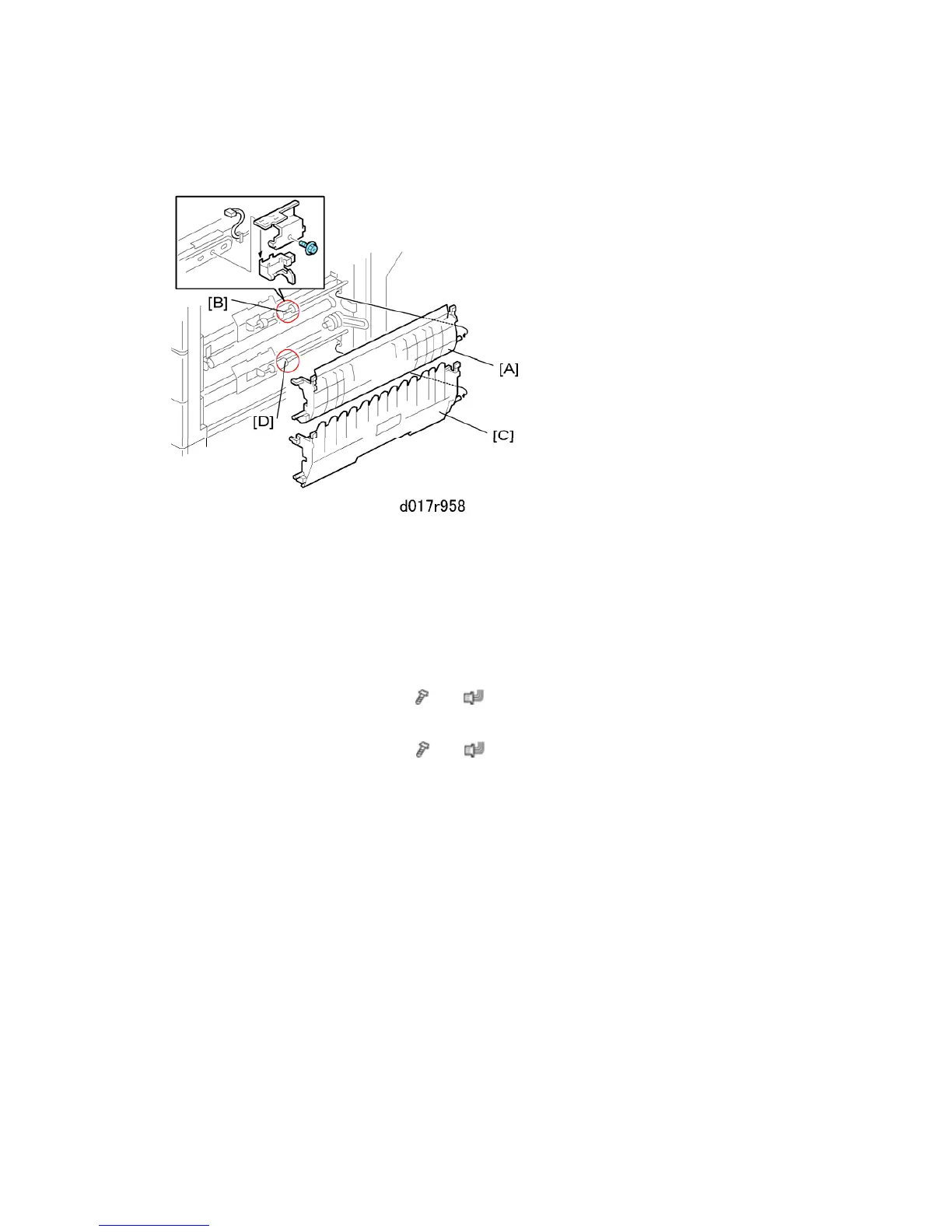

2. Remove:
[A] Upper cover
[B] Upper relay sensor (Bracket
x1, x1, Pawls x4)
[C] Lower cover
[D] Lower relay sensor (Bracket
x1, x1, Pawls x4)
