Main Body
SM 9
B793
Booklet
Finisher
B793
3.
Remove the two gears [A], [B].
4.
Remove the shift tray motor [C] (
x 2,
x 1)

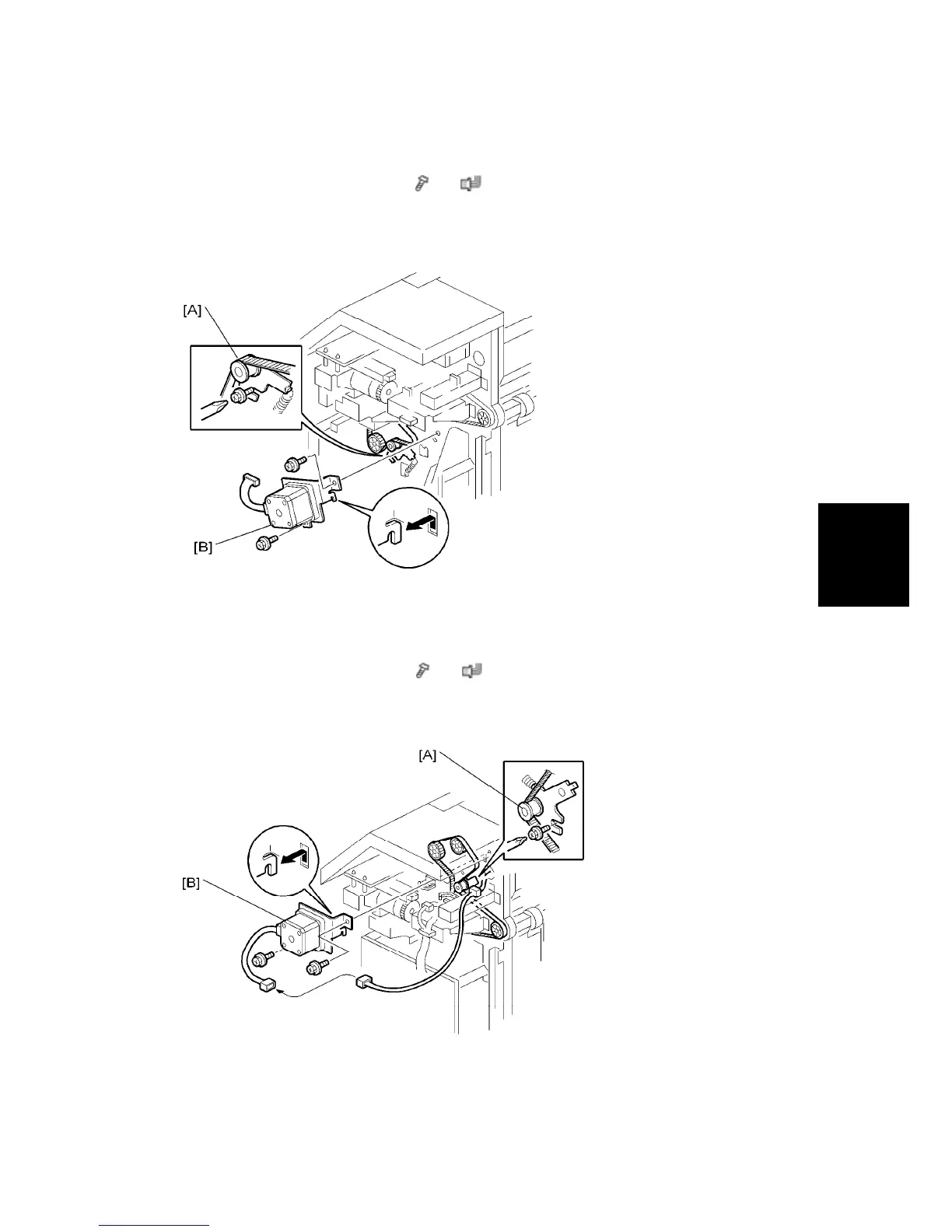

1.2.8 ENTRANCE
MOTOR
1.
Remove the rear cover
.
2.
Release the belt tension [A].
3.
Remove the entrance motor [B] (
x 2,
x 1).
1.2.9
UPPER TRANSPORT MOTOR
1.
Remove the rear cover
.
736
738
