Proof Tray
B793 40 SM
2.3 PROOF TRAY

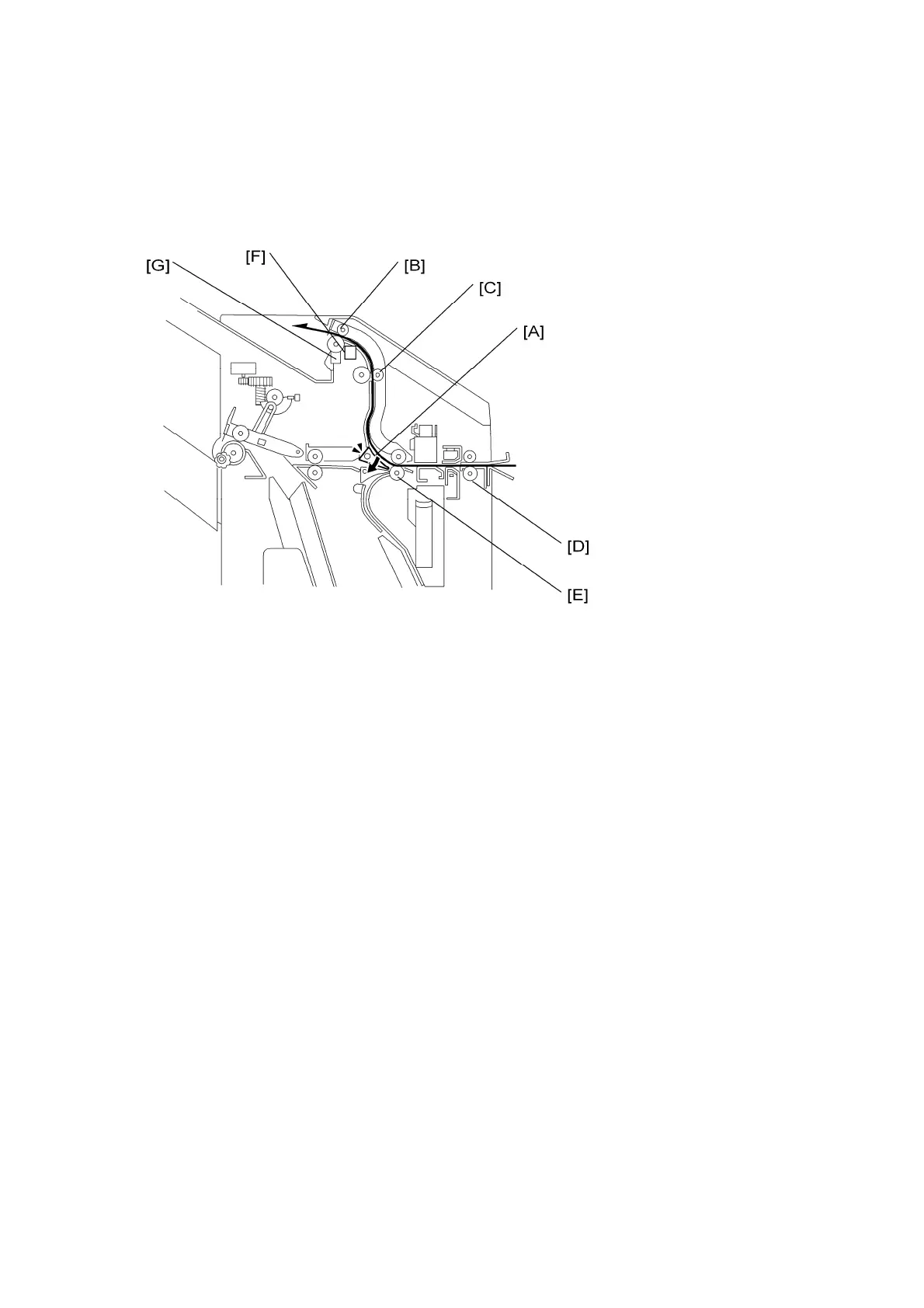

Proof Tray Junction Gate Control [A]: Proof Tray Gate Solenoid
Roller Drive:
 Proof Tray Exit Roller [B], Proof Tray Transport Roller [C]: Controlled by the Upper
Transport Motor
 Entrance Roller [D], Transport Roller [E]: Controlled by the Entrance Motor
Jam Detection: Proof Tray Exit Sensor [F]
Tray Full Detection: Proof Tray Full Sensor [G]
