Controller Options
D017/D018/D019/D020/D084/D085 2-111 SM
Installation
Seal Check and Removal

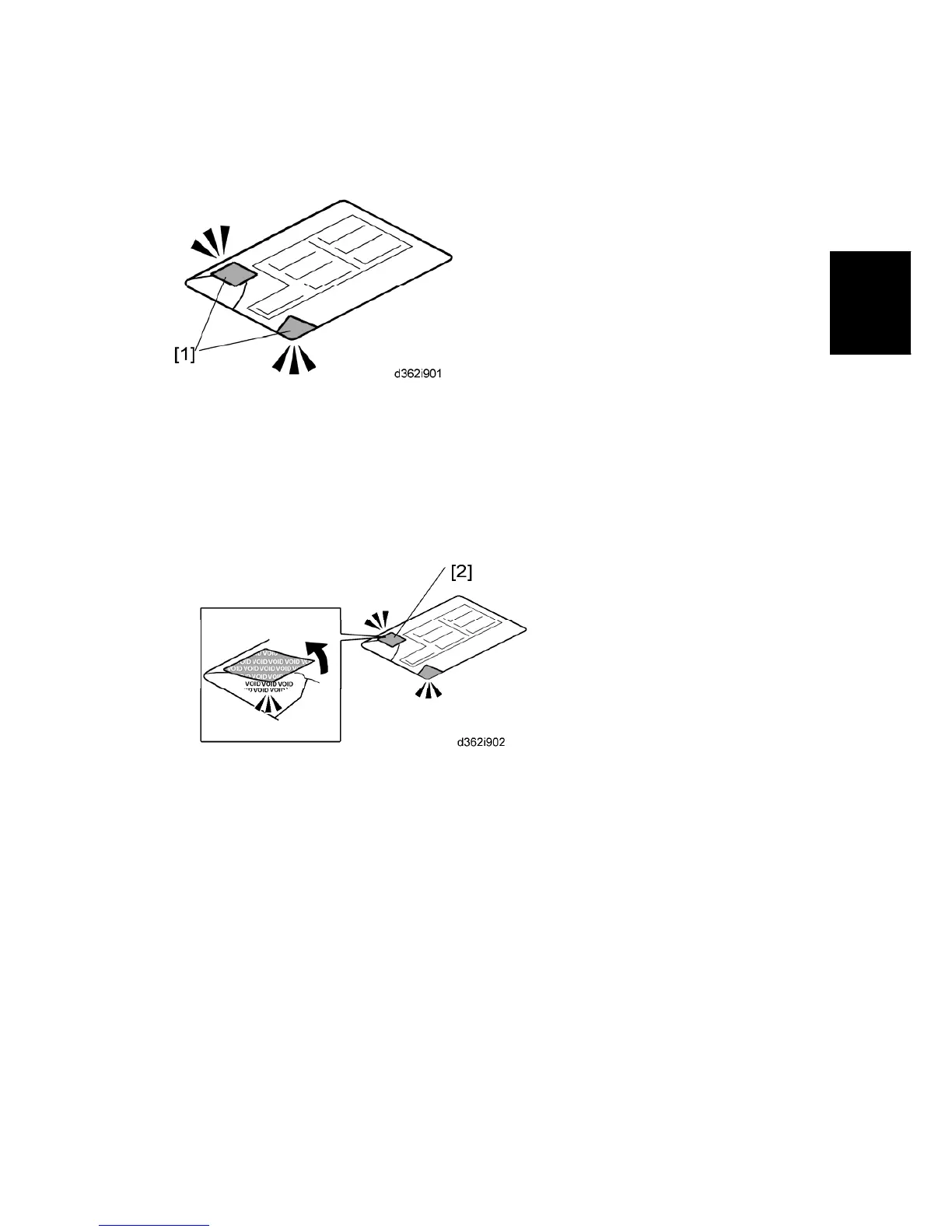

1. Check the box seals [1] on each corner of the box.
 Make sure that a tape is attached to each corner.
 The surfaces of the tapes must be blank. If you see "VOID" on the tapes, do not
install the components in the box.
2. If the surfaces of the tapes do not show "VOID", remove them from the corners of the
box.
3. When you remove each seal, the "VOID" marks [2] can be seen. In this condition, they
cannot be reattached to the box.
DOS Installation
1. Switch off the machine.
2. Disconnect the network cable.
3. Turn the main power switch on.
4. Turn the operation switch and main power switch off.
