TRAY COVER REPLACEMENT
D385 6 SM
3. REPLACEMENT AND ADJUSTMENT
3.1 TRAY COVER REPLACEMENT
3.1.1 TRAY COVER REMOVAL
1. Remove the tray cover [A] by pressing on the two pawls [B] on the left side of
the cover.
3.1.2 TRAY COVER ATTACHMENT
NOTE: The right side of the tray cover should be attached first.
1. Fit the pawls [C] (just below the cover fin) around the thin bar [D] on the shift
tray.
2. Align the square [E] so that it fits into the groove in the underside of the tray
cover and does not interfere with the attachment of the cover.
3. Complete the attachment by inserting the left side pawls [B] into place.

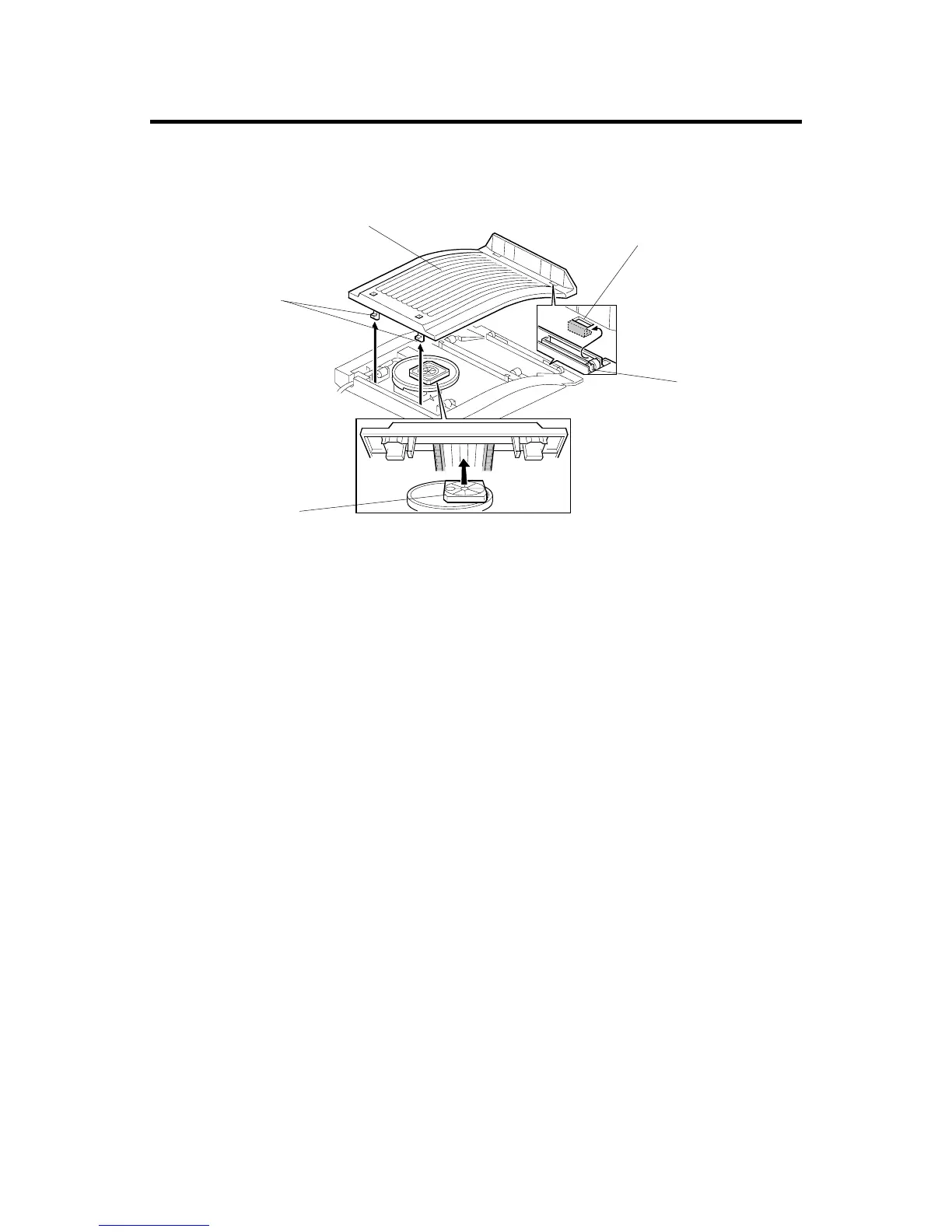

B459R101.WMF
[A]
[B]
[C]
[D]
[E]
