Component Layout
SM 13 D369
Duplex Unit
AD3000
D369

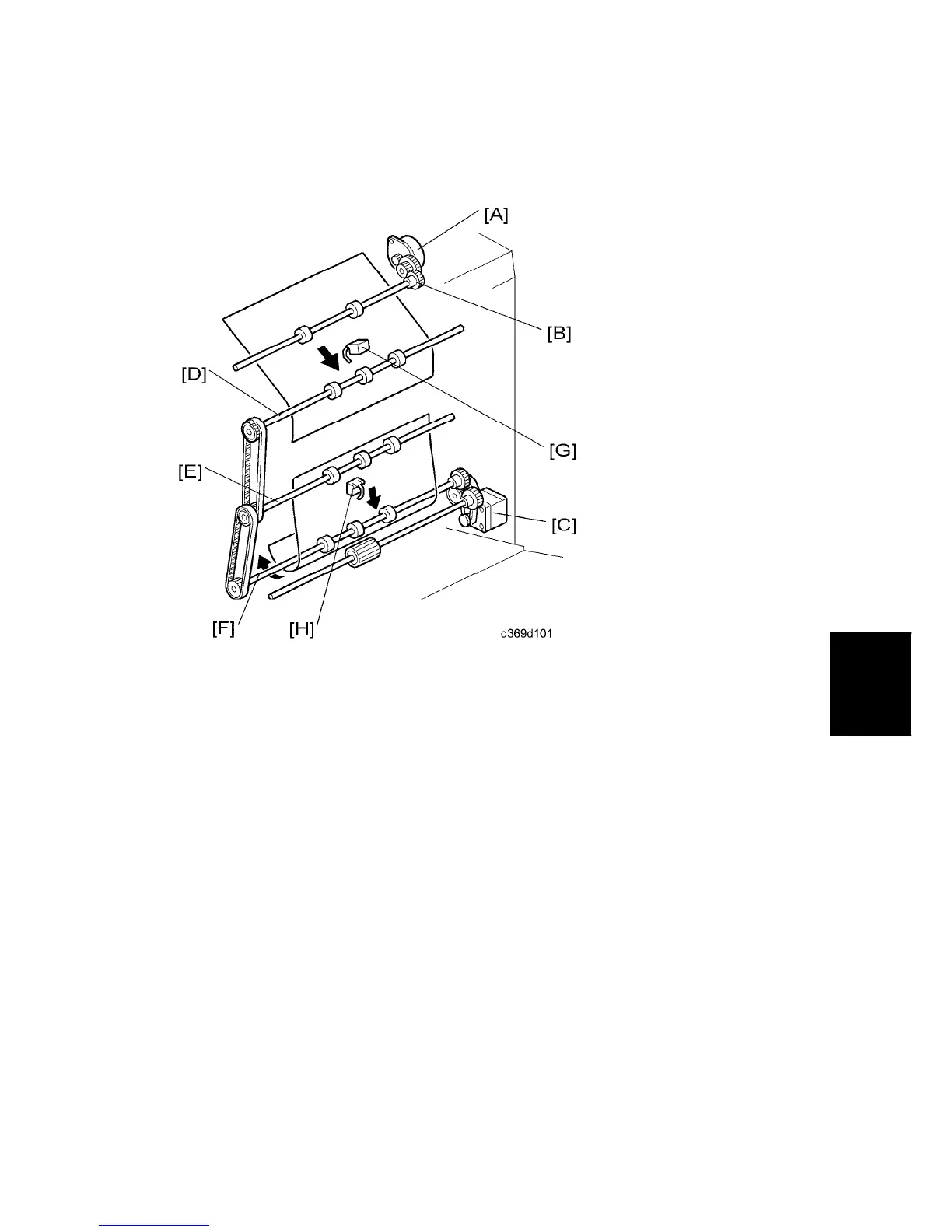

2.1.2 DUPLEX DRIVE
The interchange motor [A] drives the following:
 Paper exit/ inverter roller [B]
The duplex/bypass motor [C] drives the following:
 Duplex transport roller 1 [D]
 Duplex transport roller 2 [E]
 Duplex transport roller 3 [F]
The duplex entrance sensor [G] and duplex exit sensor [H] control the interleave movement
and detect paper jams.
