PAPER FEED
SM 5 B391
Large
Capacity Tray
B391
2. DETAILED SECTION DESCRIPTIONS
2.1 PAPER FEED
This products uses an FRR type paper feed mechanism.
The paper feed unit consists of the pickup roller [A], paper feed roller [B], reverse
roller [C], and grip and transport rollers.
There is a torque limiter in the back of the reverse roller (ferrite powder type).

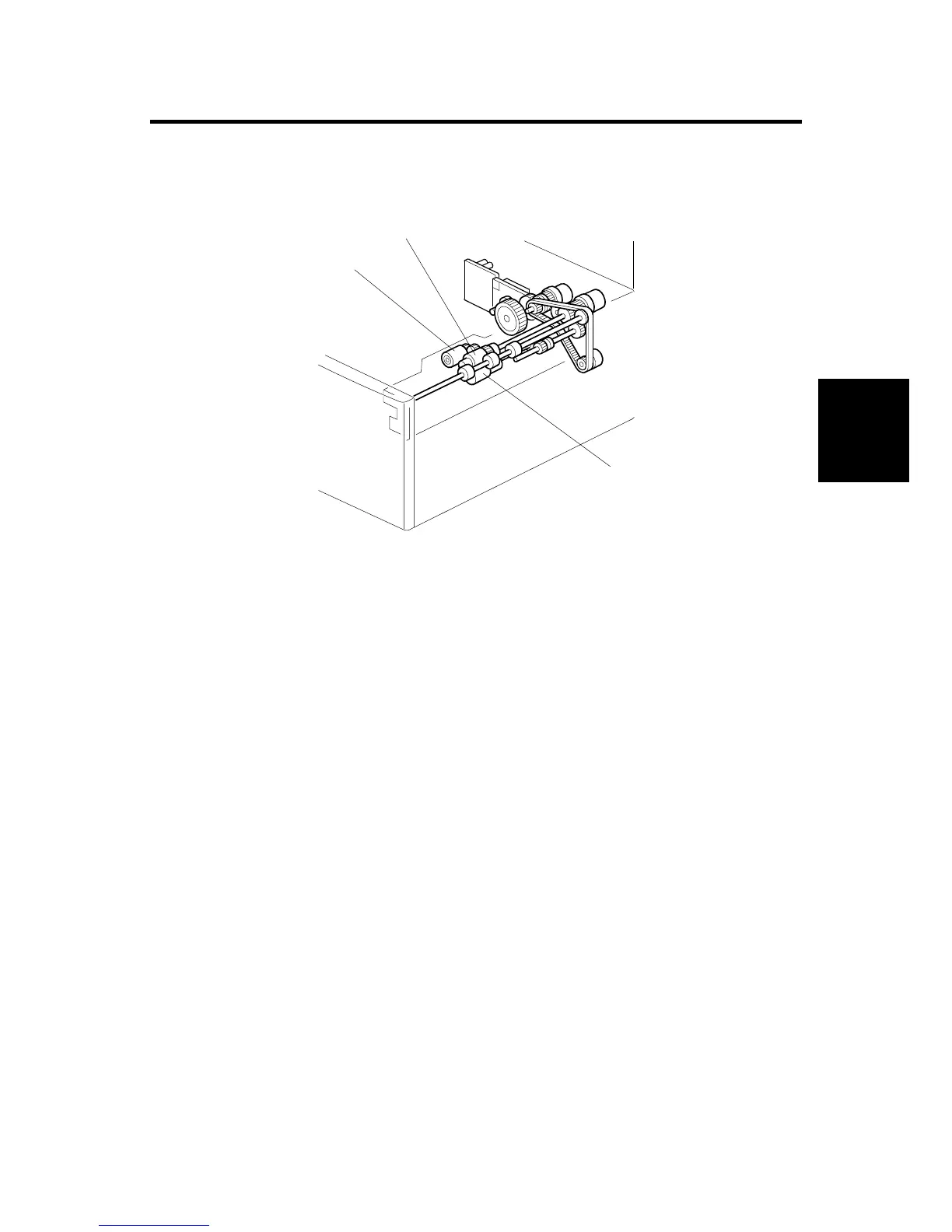

B391D104.WMF
[A]
[B]
[C]
