Photoconductor Unit (PCU)
D017/D018/D019/D020/D084/D085 4-25 SM
Replacement
and
Adjustment

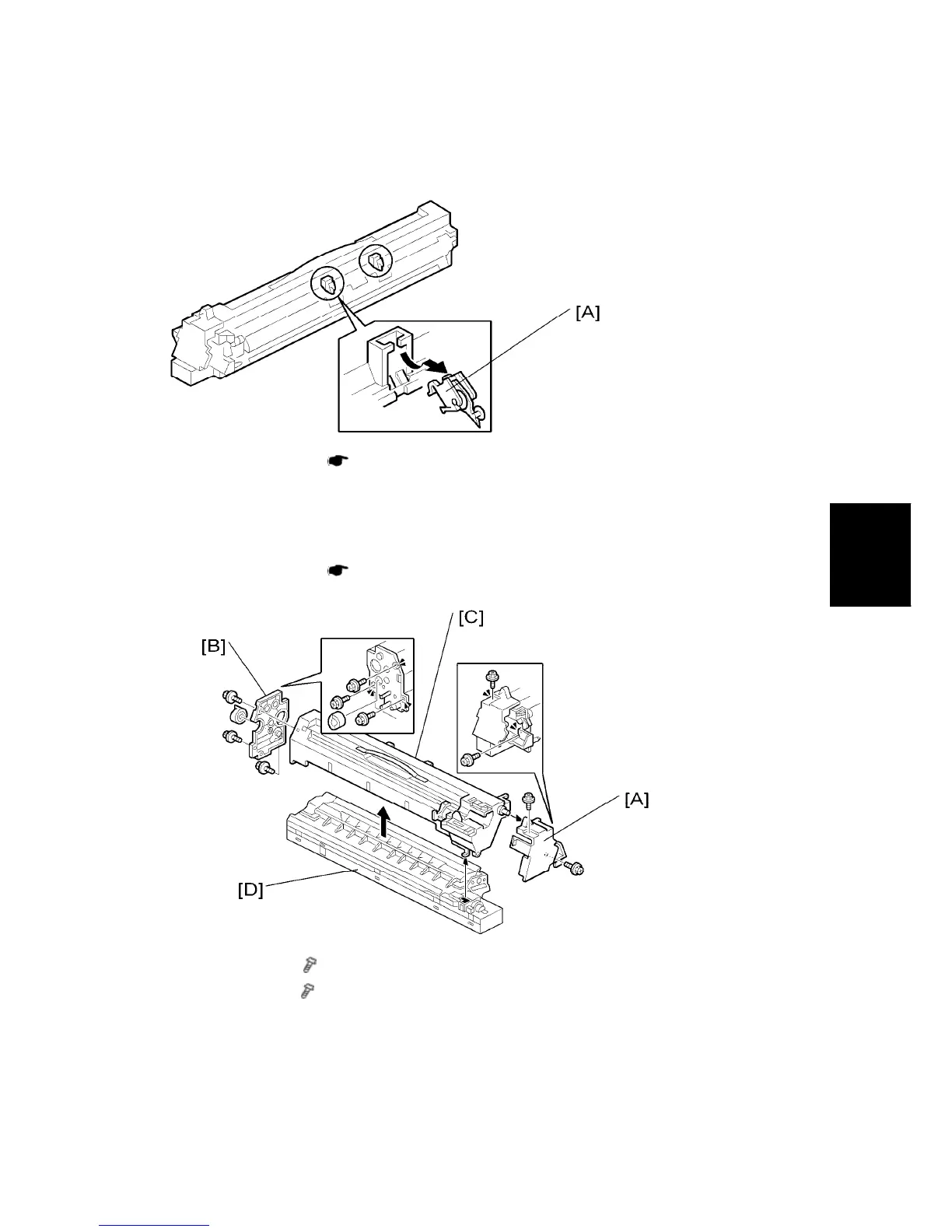

4.5.2 PICK-OFF PAWLS
1. Remove the PCU. (
p.4-24)
2. Hold the pawl [A] by its sides, pull it down and slowly twist it away from the PCU.
4.5.3 OPC DRUM
1. Remove the PCU. ( p.4-24)
2. Front cover [A] (
x2)
3. Rear cover [B] (
x3, Coupling x1)
4. Top part [C]
5. Bottom part [D]
