Paper Feed
D017/D018/D019/D020/D084/D085 4-47 SM
Replacement
and
Adjustment

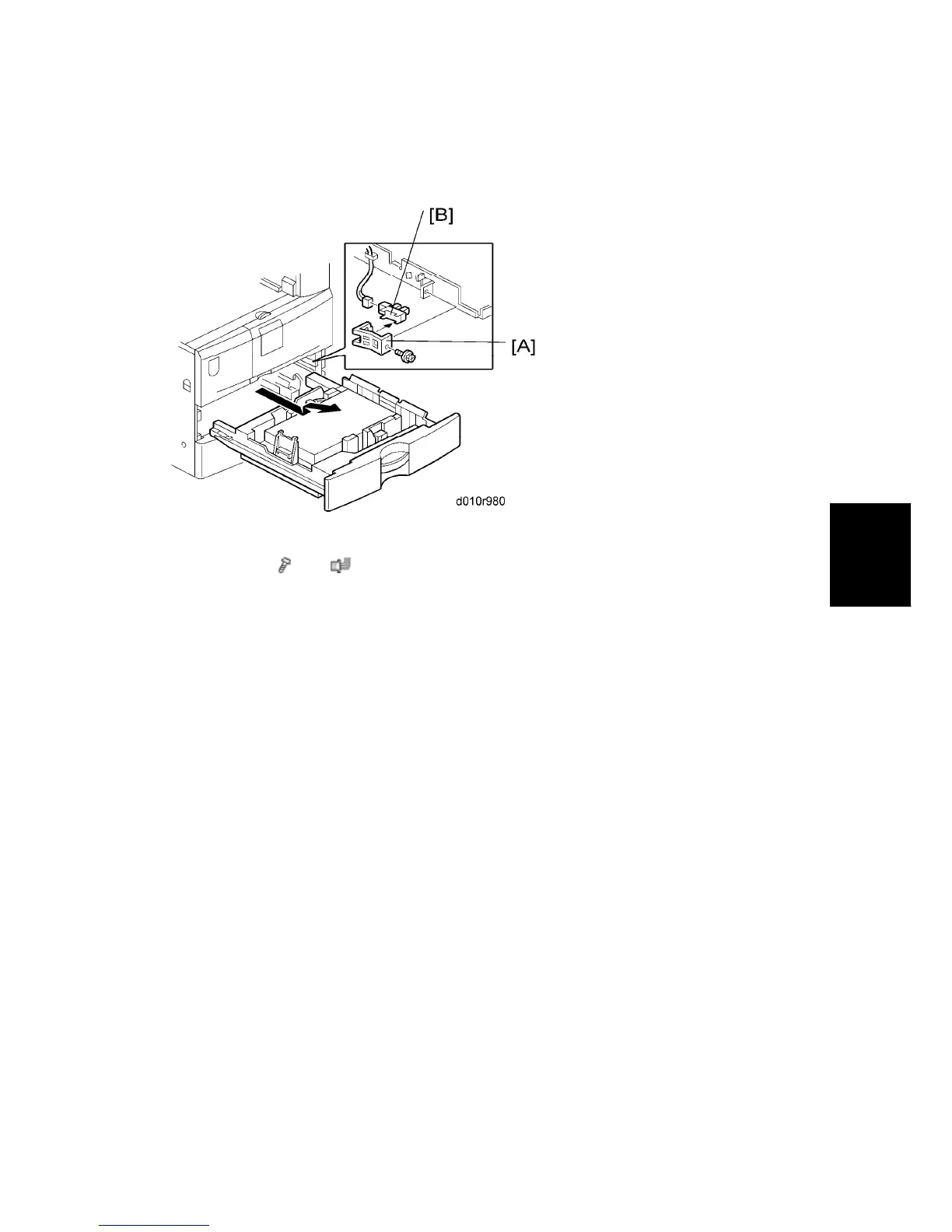

4.8.4 PAPER END SENSOR
1. Paper cassette
2. Bracket [A] (
x 1, x 1)
3. Paper end sensor [B] (Hook x1)
