Scanner Unit
SM 4-10 D017/D018/D019/D020/D084/D085

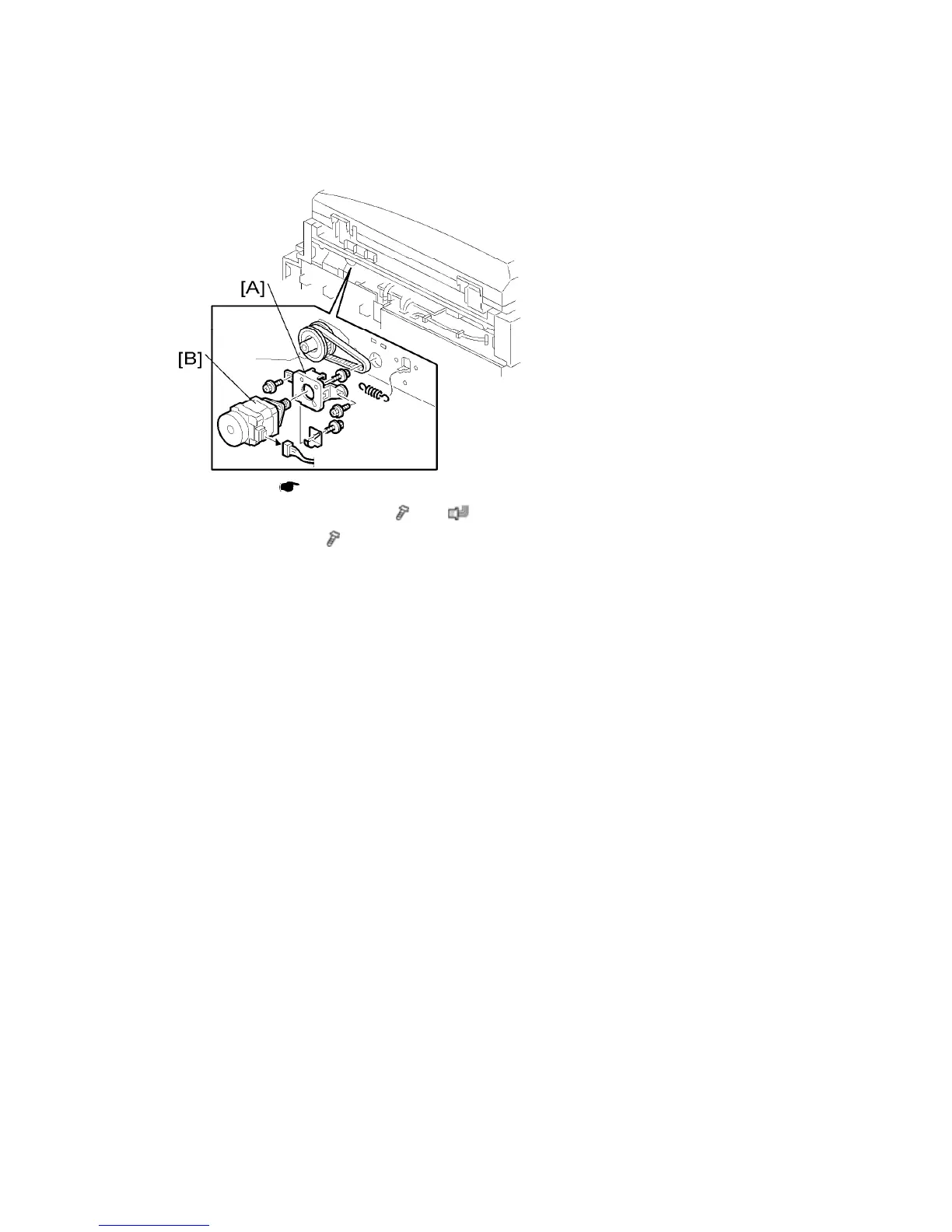

4.3.4 SCANNER MOTOR
1. Rear cover (
p.4-7 "Exposure Lamp")
2. Scanner motor assembly [A] (
x 2, x 1, spring x 1)
3. Scanner motor [B] (
x 2)
