DETACHING THE TRAY FROM THE MAINFRAME
SM 11 B391
Large
Capacity Tray
B391
3. REPLACEMENT AND ADJUSTMENT
3.1 DETACHING THE TRAY FROM THE MAINFRAME

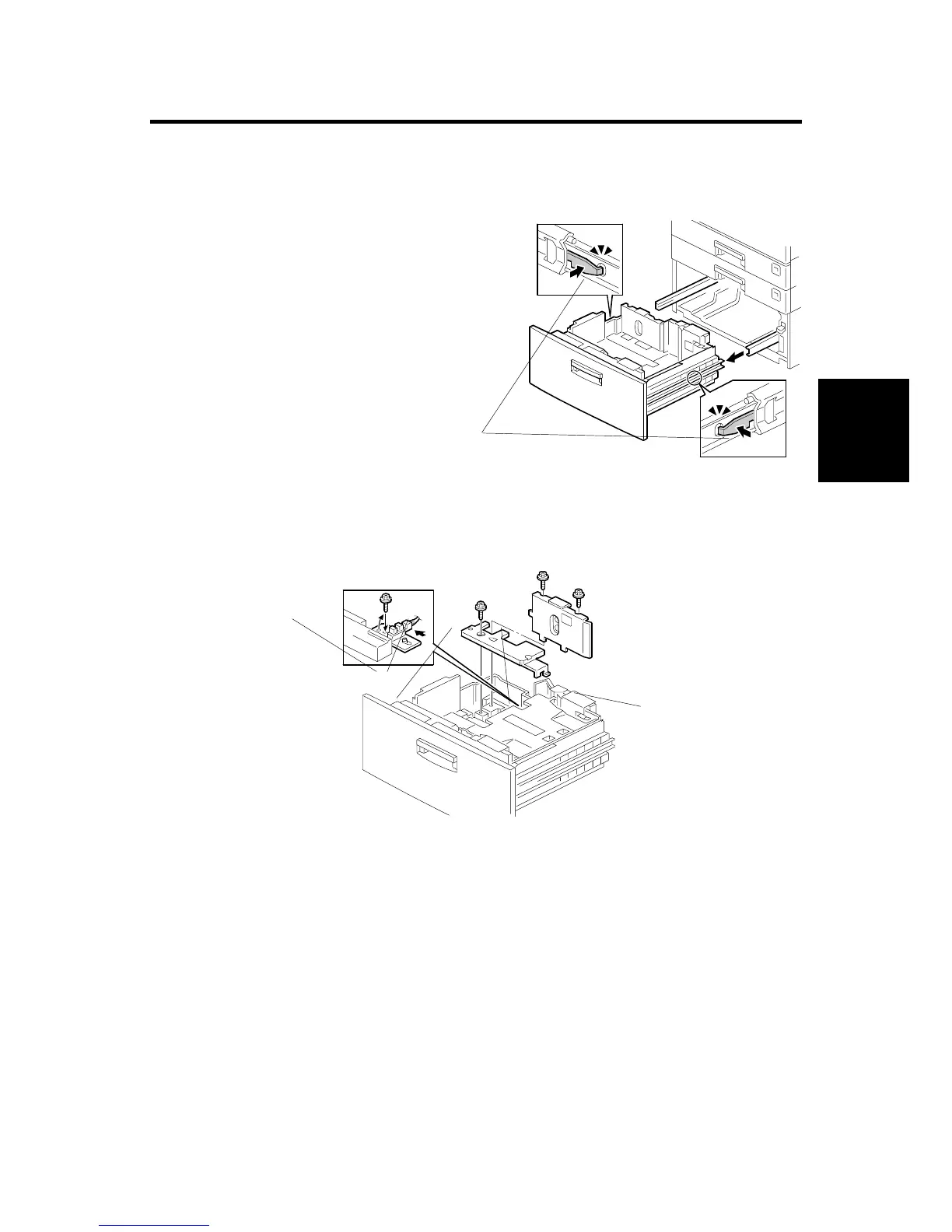

While pressing the stopper attached to the
guide rail, pull out the large capacity tray.
NOTE: When reinstalling the tray, set the
tray on the guide rail and carefully
push the tray in, making sure to keep
the tray level.
3.2 REAR FENCE HP SENSOR
1. Pull out the large capacity tray.
2. Remove the left tray rear side fence [A] (2 screws).
3. Remove the rear fence bracket [B] (1 screw).
4. Remove the connector of the rear fence HP sensor.
5. Replace the rear fence HP sensor [C] (1 screw).
NOTE: When securing the sensor in place, be sure to fasten the screw in the
proper position.
B391R101.WMF
B391R102.WMF
[A]
[C]
[B]
[A]
A4
LT
