Electrical Component
D369 6 SM

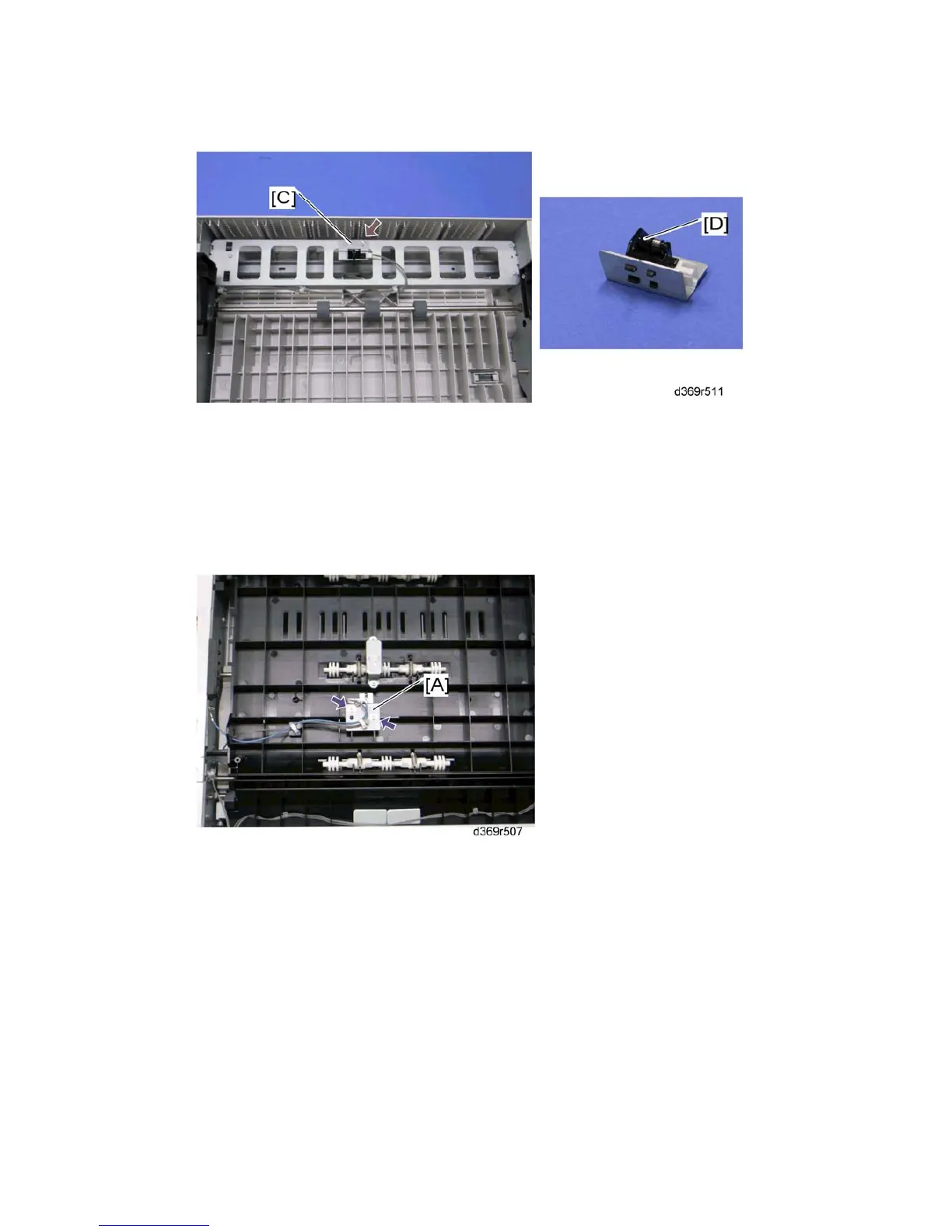

4. Duplex entrance sensor bracket [C] ( x 1, x 1)
5. Duplex entrance sensor [D] (hooks)
1.2.2 DUPLEX EXIT SENSOR
1. Duplex unit ( Duplex Unit)
2. Paper guide unit ( By-pass Tray)
3. Duplex exit sensor bracket [A] ( x 2)
