Photoconductor Unit (PCU)

SM 4-28 D017/D018/D019/D020/D084/D085

4.5.5 CLEANING BLADE

1. Remove the PCU. ( p.4-24)

2. Remove the OPC drum. (

p.4-25)

3. Remove the charge roller and cleaning roller. (

p.4-27)

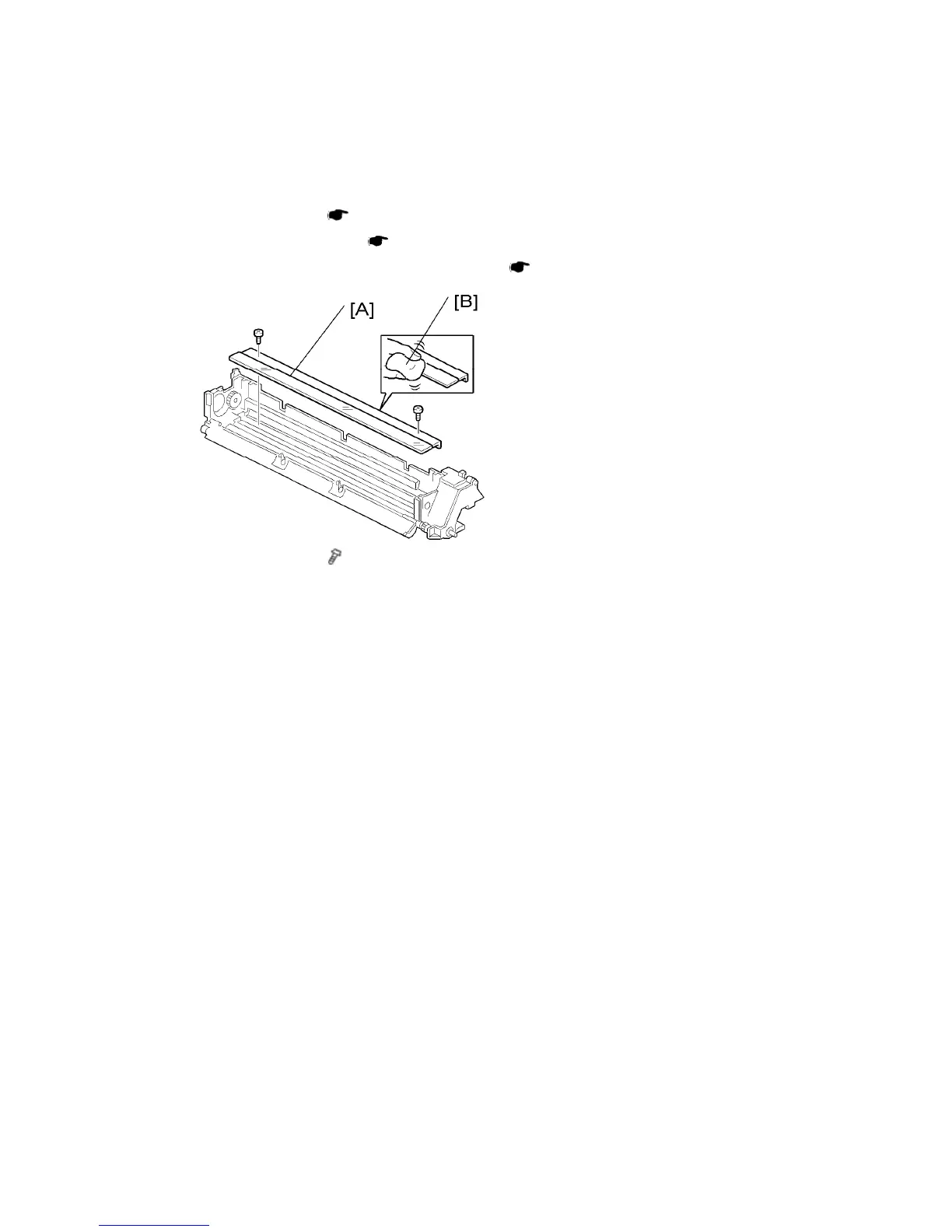

4. Cleaning blade [A] (

x2)

Reinstallation: Cleaning Blade

 To prevent damage to the new cleaning blade and OPC drum, apply some toner to the

edge of the new blade [B].

 Install the new blade. Remove some toner from the edge of the old blade with your

finger, and apply it evenly along the full length of the new blade.
