1. REPLACEMENT AND ADJUSTMENT
1.1 UNIT AND COVER
1.1.1 DUPLEX UNIT

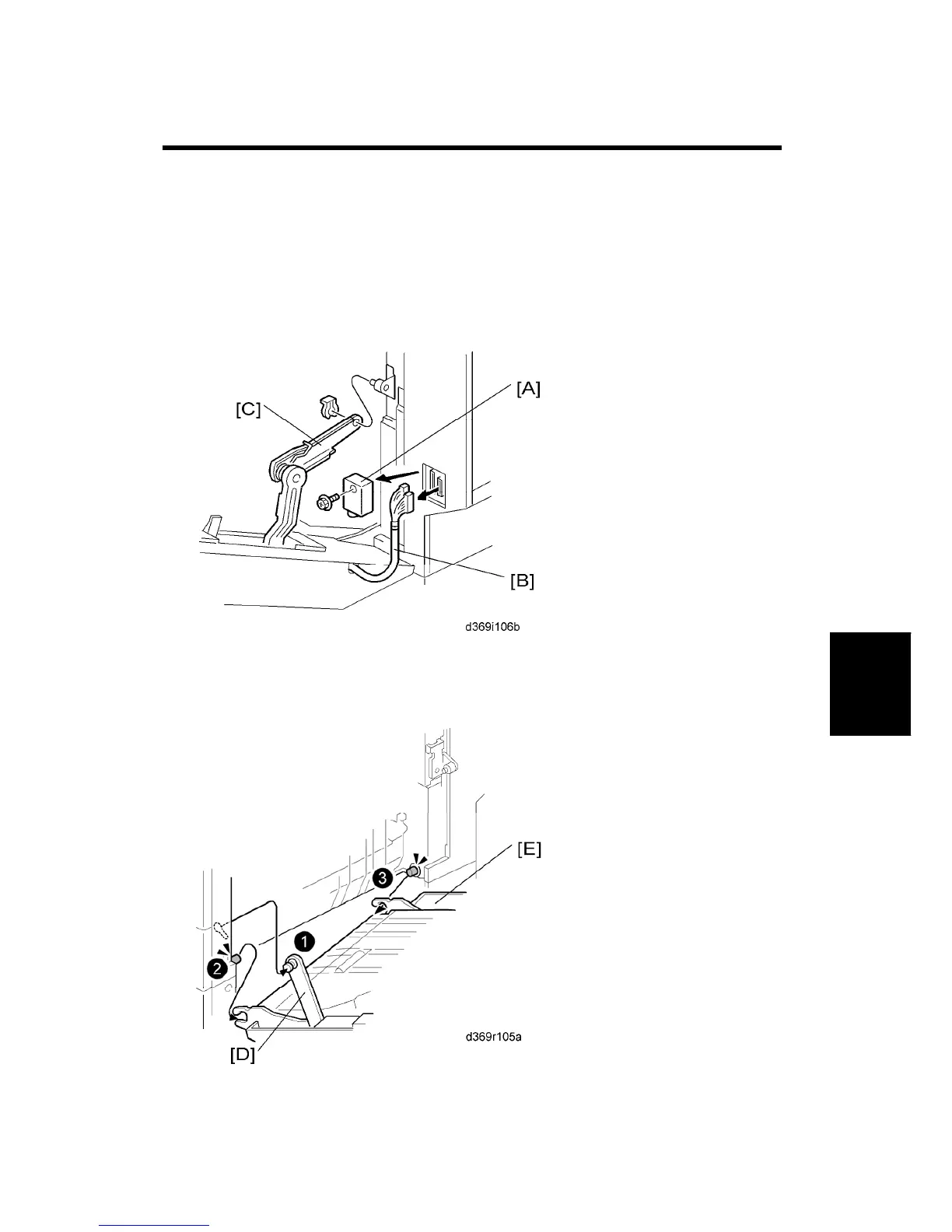

1. Open the right door and right door of the optional paper tray unit or LCT..
2. Connector cover [A] ( x 1).
3. Disconnect the cable [B].
4. Release the rear link [C] ( x 1).
5. Release the front link [D] and remove the duplex unit [E].
