Electrical Components
D331 6 SM
1.3 ELECTRICAL COMPONENTS
 Turn off the main power switch and unplug the machine before beginning any of
the procedures in this section.

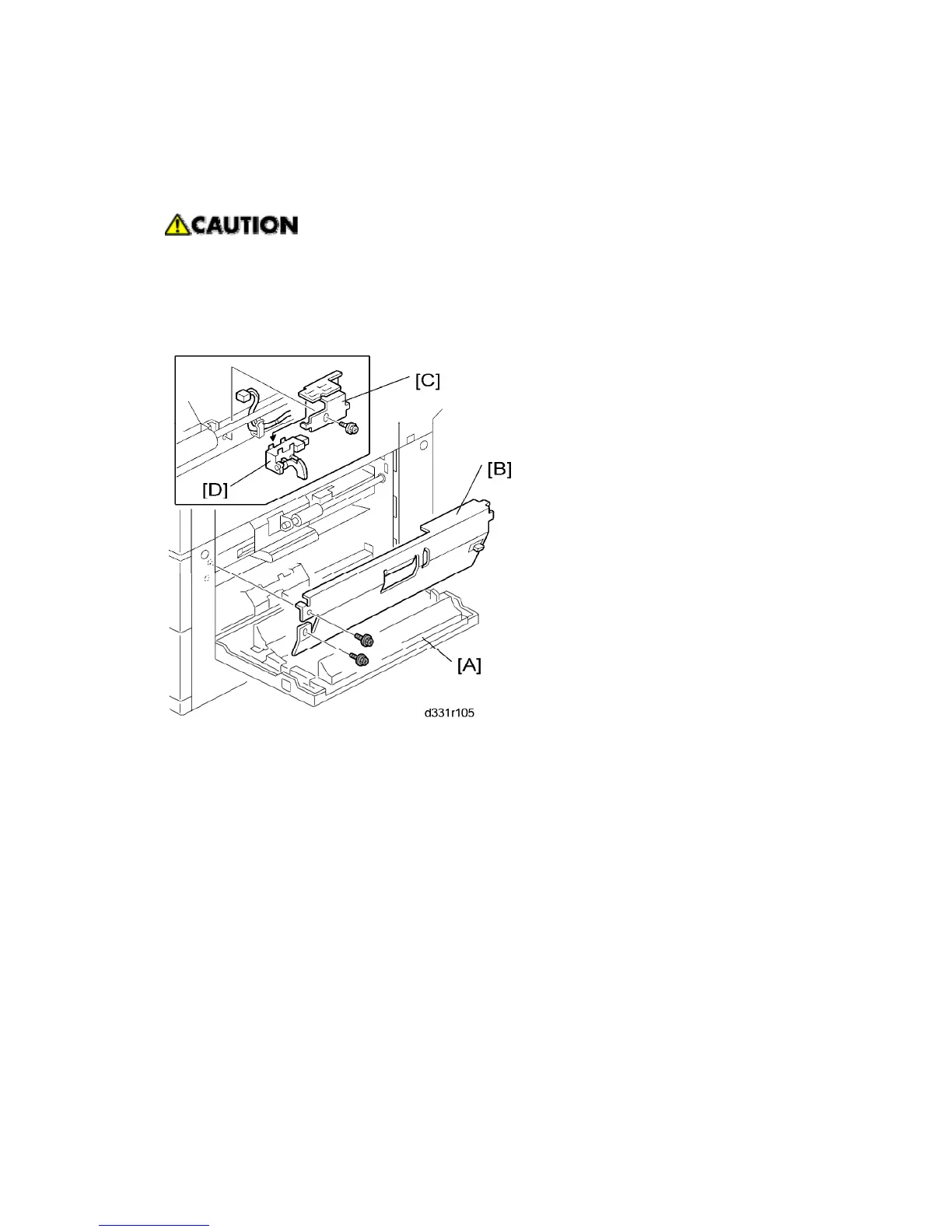

1.3.1 VERTICAL TRANSPORT SENSOR
1. Open the tray cover [A]
2. Guide plate [B] ( x 2)
3. Sensor bracket [C] ( x 1,  x 1)
4. Vertical transport sensor [D] (hooks)
