Paper Feed

D017/D018/D019/D020/D084/D085 4-53 SM

Replacement

and

Adjustment

4.8.10 REGISTRATION SENSOR

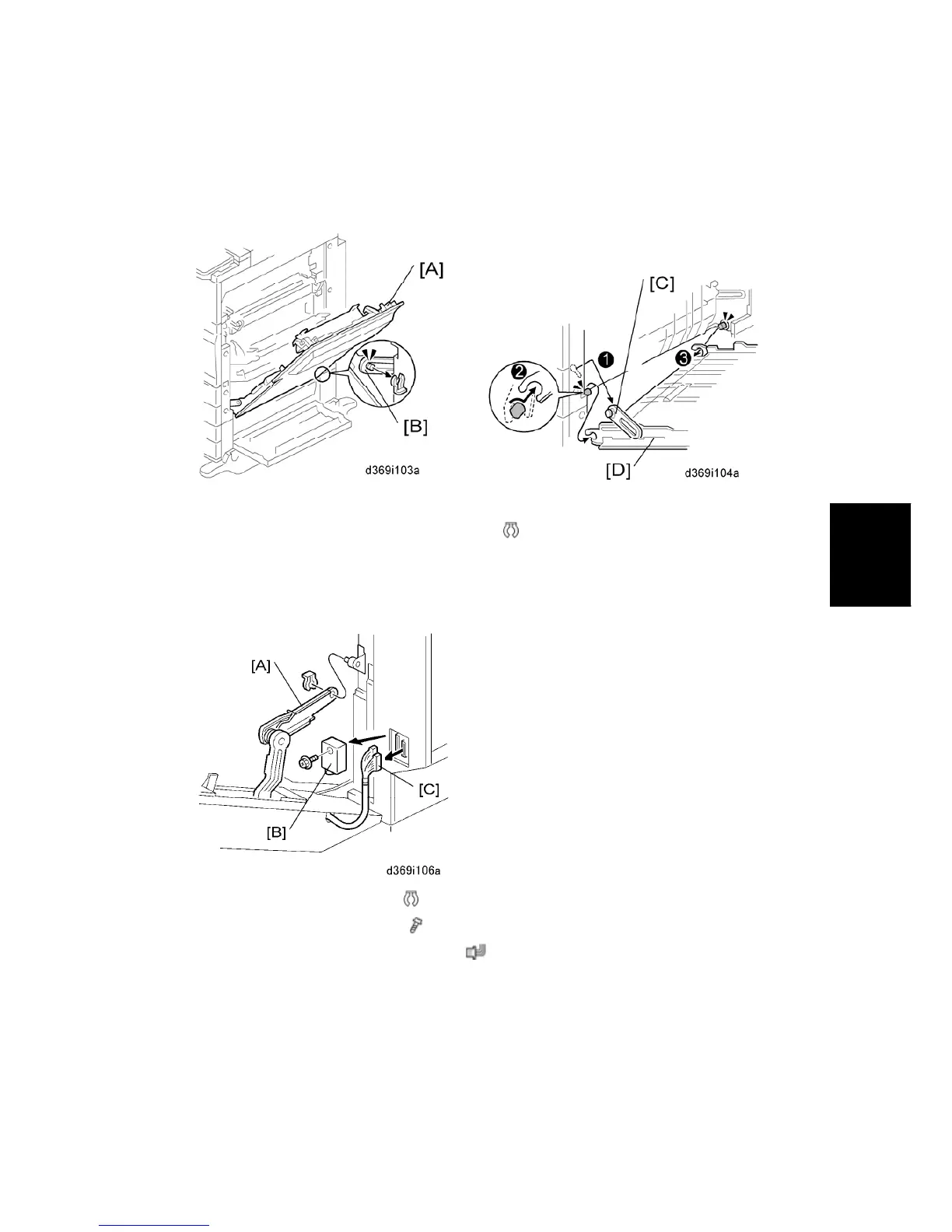

1. Open the right cover of the optional paper tray unit or LCT.

2. Open the right cover [A].

3. Release the rear link [B] from the right cover (

x 1).

4. Release the front link [C] from the mainframe.

5. Remove the right cover [D].

If the duplex unit is installed:

6. Disconnect the right hinge [A] (

x1)

7. Remove the connector cap [B] (

x1).

8. Disconnect the duplex unit harness [C] (

x1).
