Drive Components
SM 5 D331
Paper Tray
Unit PB3030
D331
1.2.5 LIFT MOTORS

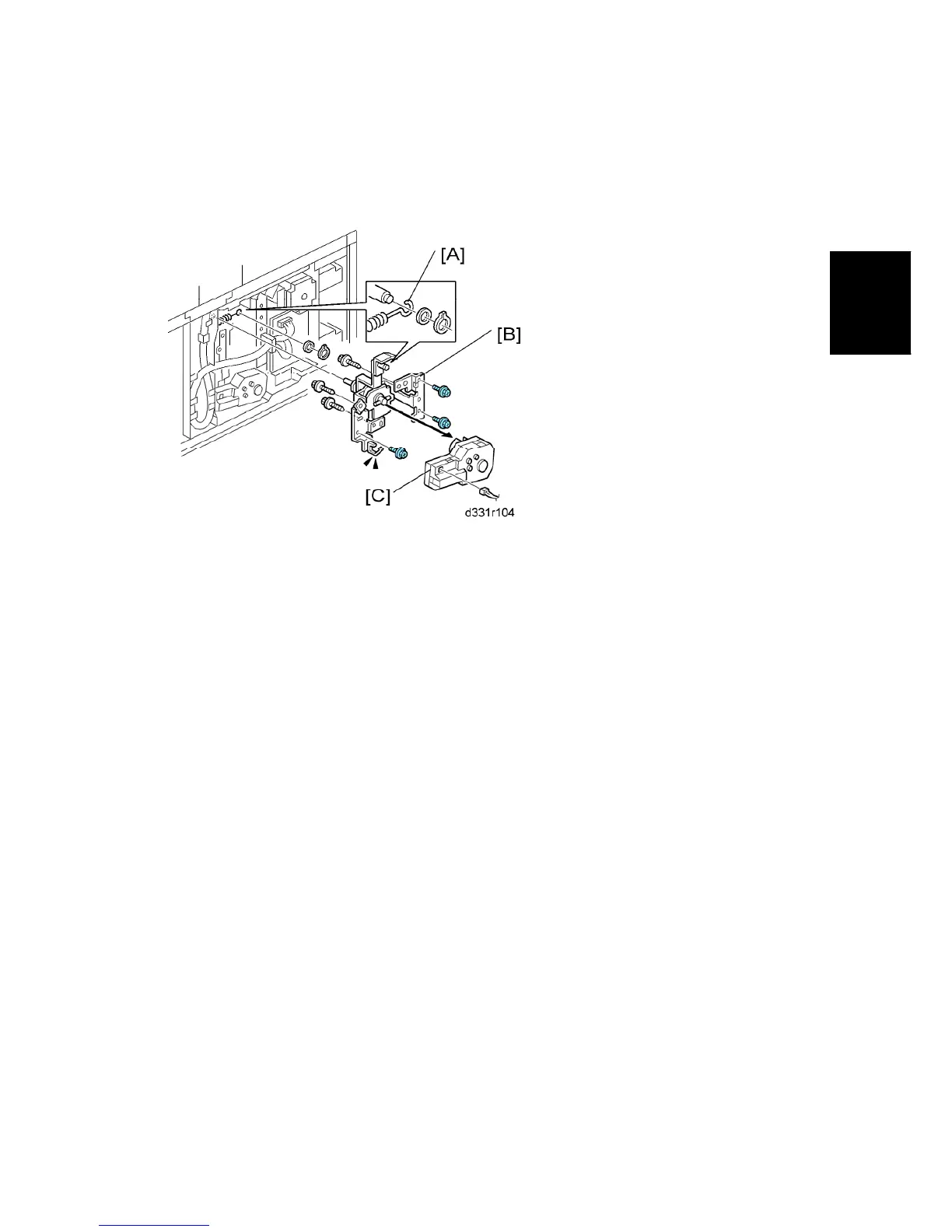

Upper Lift Motor
1. Rear cover ( "Covers")
2. Spring [A] (snap ring x 1, spacer x 1)
3. Lift motor bracket [B] ( x 3, x 1)
4. Upper lift motor [C] ( x 3)
Lower Lift Motor
1. Rear cover ( "Covers")
2. Spring (snap ring x 1, spacer x 1)
3. Lift motor bracket ( x 4, x 1)
4. Lower lift motor ( x 3)
