Fusing/Exit
SM 4-40 D017/D018/D019/D020/D084/D085

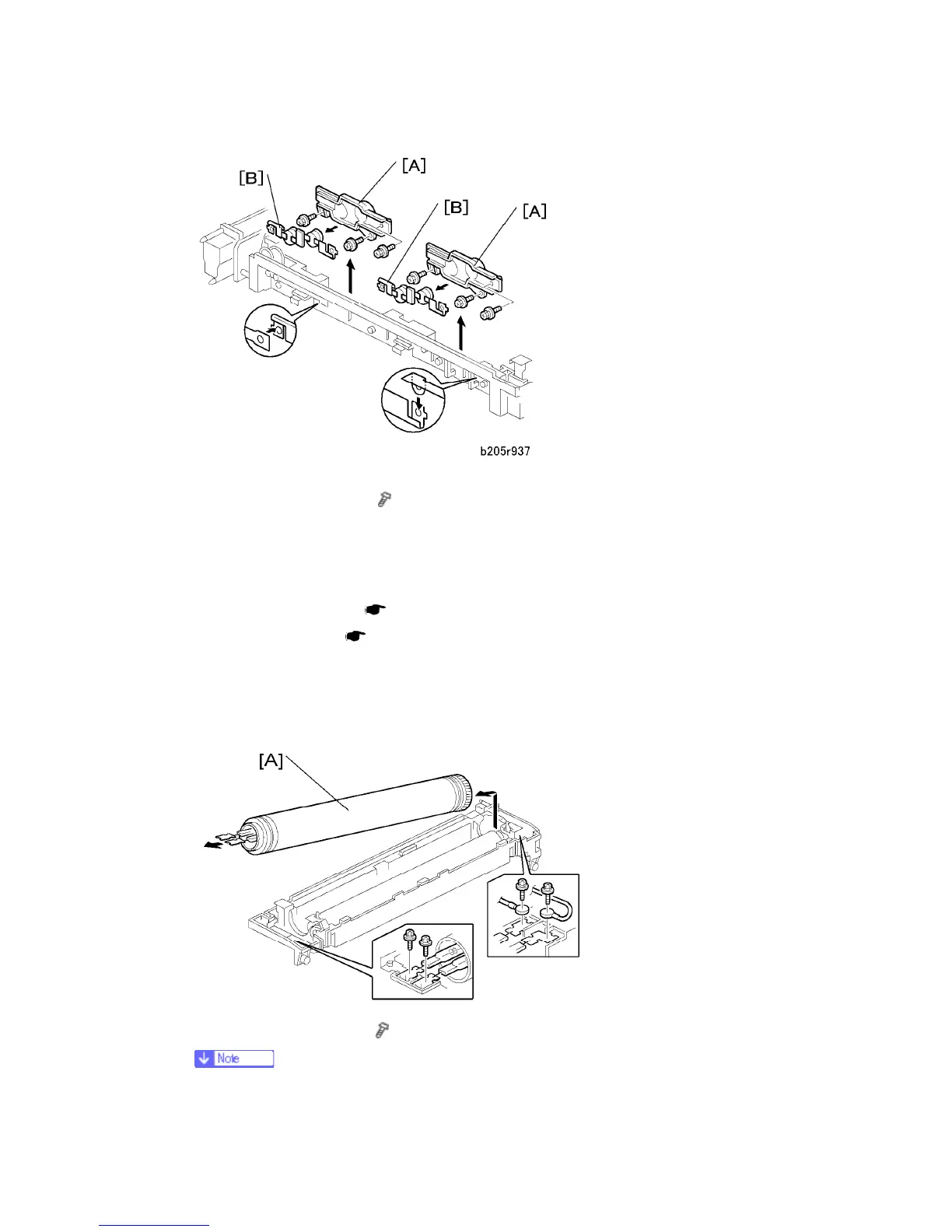

5. Remove:
[A] Thermostat holders x2 (
x3 each.).
[B] Thermostats x4
4.7.4 HOT ROLLER AND FUSING LAMPS
1. Remove the fusing unit. ( p.4-37)
2. Remove these parts: (
p.4-38 "Thermostats").
 Fusing upper cover.
 Pressure springs.
 Hot roller stripper bracket.
3. Remove the fusing lamps (
x4) and hot roller assembly [A].
 Do not touch the surface of the fusing lamp with bare hands.
