Paper Feed
SM 4-52 D017/D018/D019/D020/D084/D085
4.8.9 UPPER/LOWER PAPER SIZE SENSORS
1. Pull out the paper tray 1 and/or 2.
2. Remove:
 Relay connector cover (
x1, x1)
 Rear upper cover (
x4)
 Rear lower cover (
x4)
3. Remove:

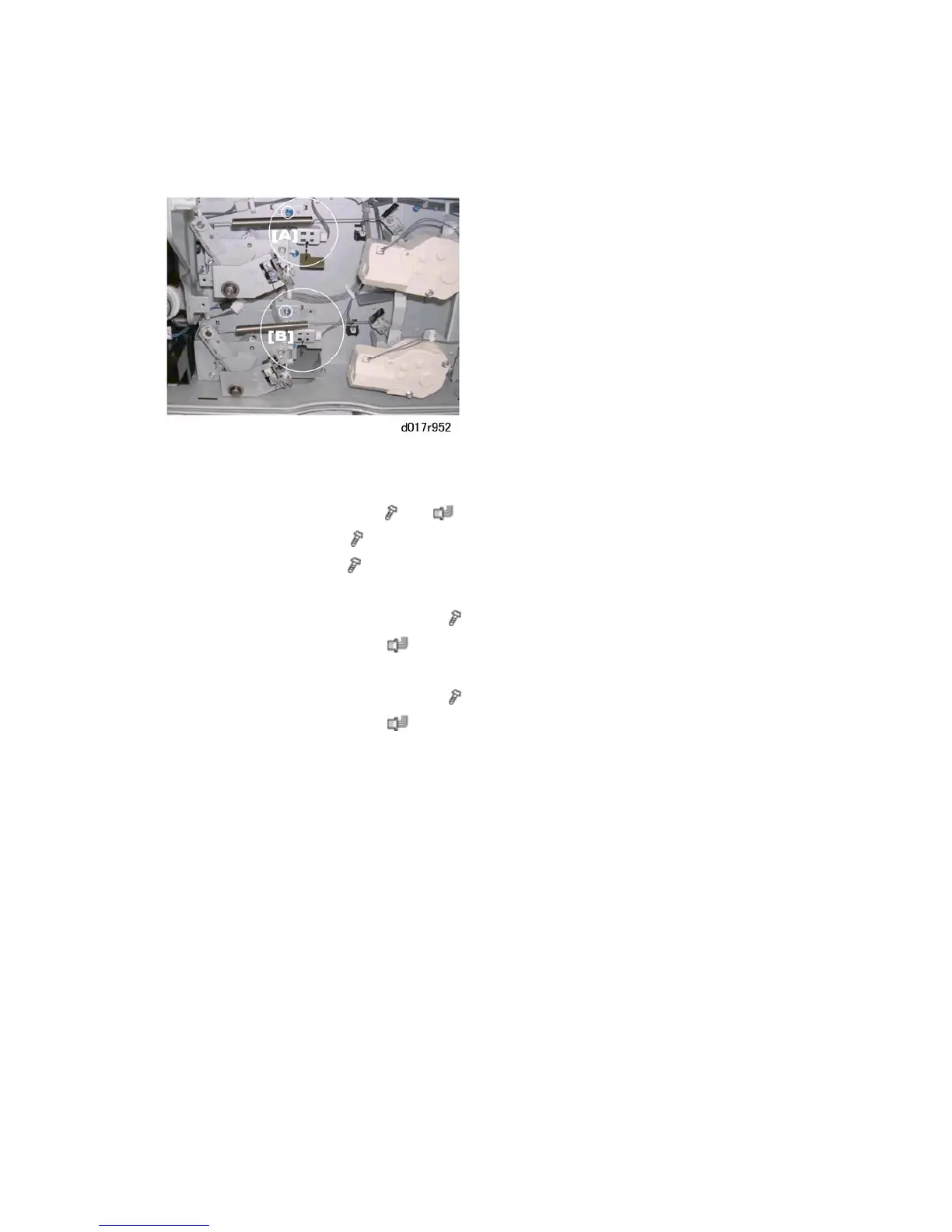

[A] Tray 1 paper size sensor bracket (
x 1)
 Tray paper size sensor (
x 1, Pawls x4)
-or-
[B] Tray 1 paper size sensor bracket (
x 1)
 Tray paper size sensor (
x 1, Pawls x4)
