Paper Transport
SM 21 D372
500-Sheet
Finisher
D372

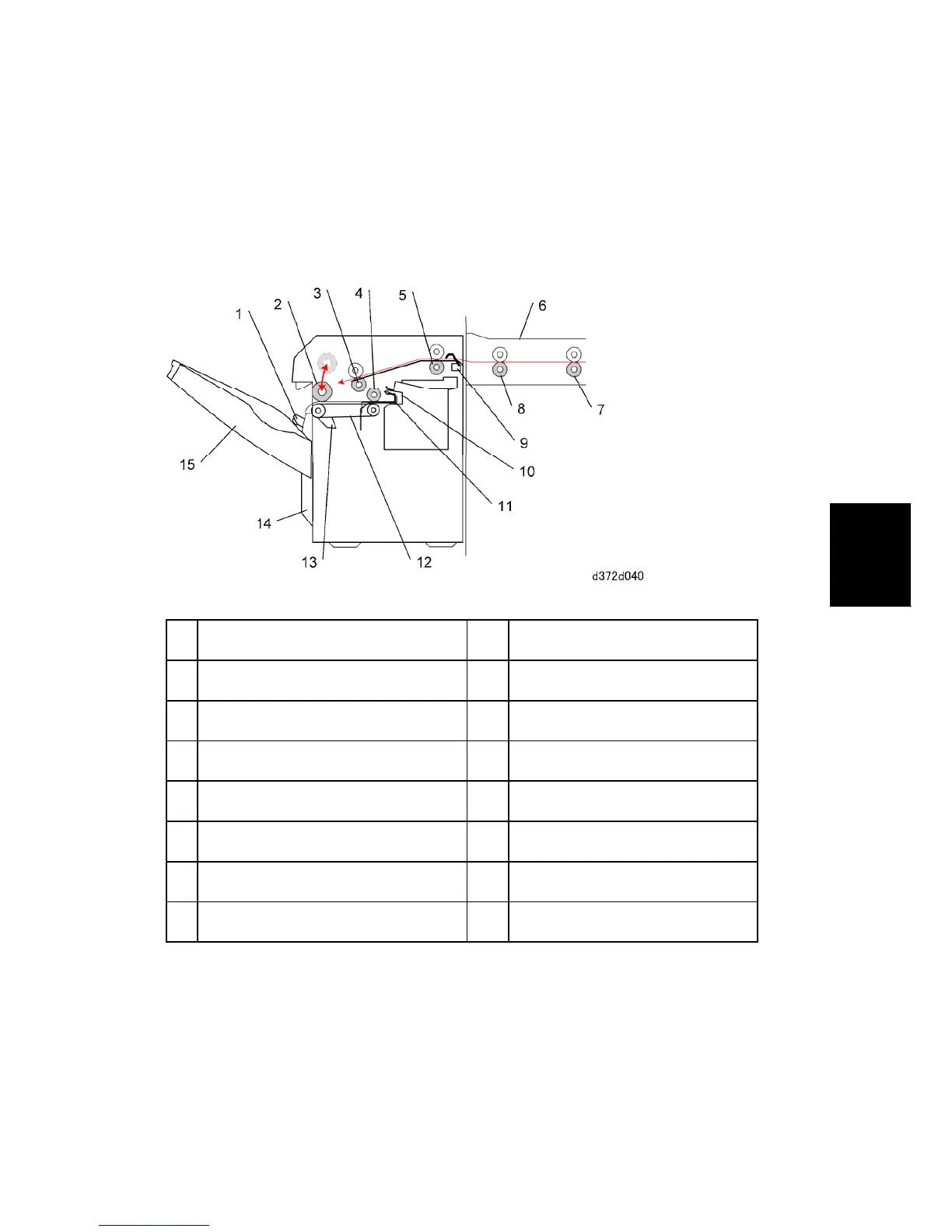

2.2 PAPER TRANSPORT
2.2.1 OVERVIEW
1. Stack Edge Depressors 9. Entrance Sensor
2. Positioning Roller 10. Mobile Fence
3. Exit Roller 11. Bottom Fences (x2)
4. Return Rollers 12. Feed-Out Belts (x2)
5. Entrance Roller 13. Feed-Out Belt Pawls (x2)
6. Bridge Unit (Copier) 14. End Fence
7. Transport Roller (Main Machine) 15. Output Tray
8. Exit Roller (Main Machine)
