Boards
SM 13 D372
500-Sheet
Finisher
D372
1.4 BOARDS
1.4.1 MAIN BOARD
Preparation
Disconnect the finisher.
Remove the finisher from the side of the machine.
Remove the rear cover.

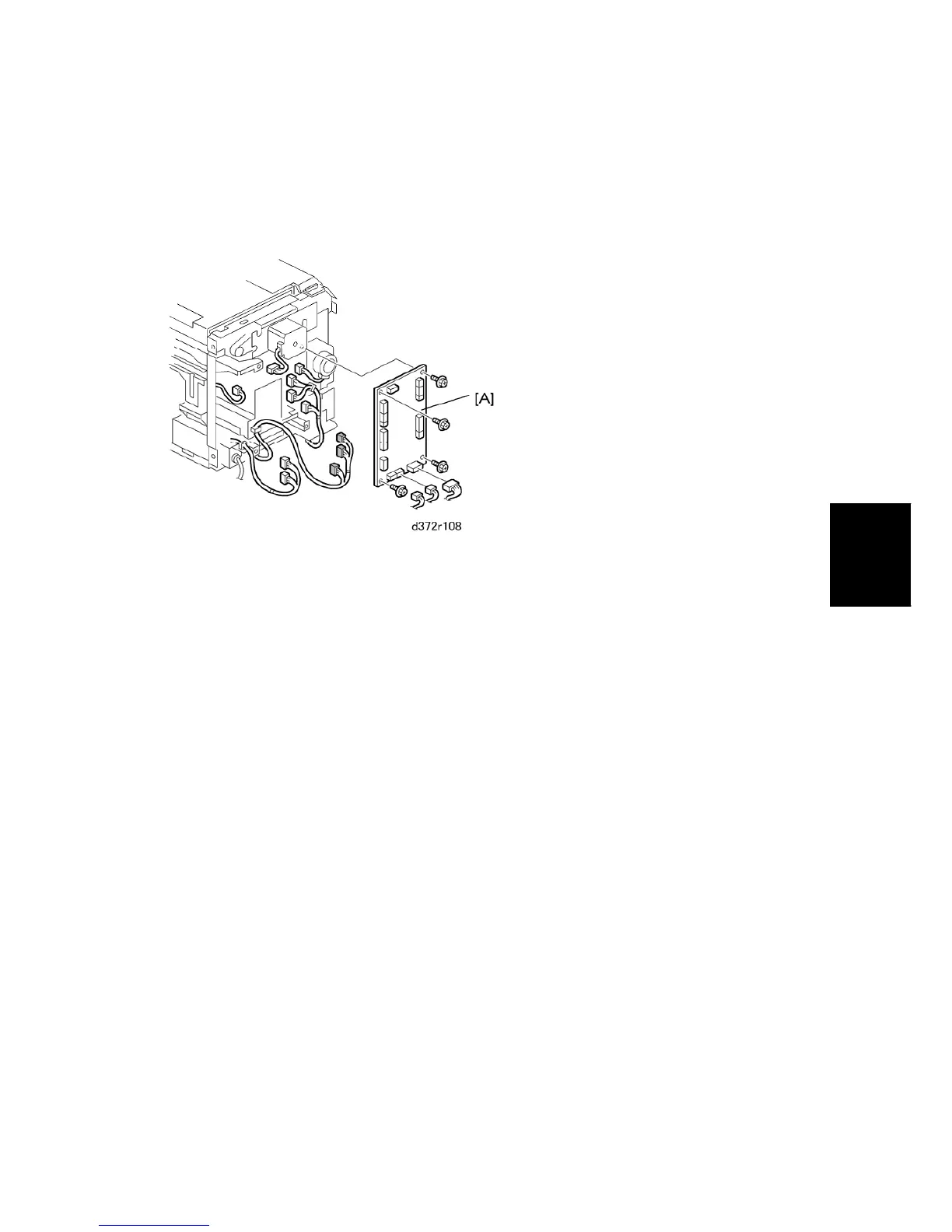

1. Remove the main board [A] ( x14, x4)
