Ricoh D017 User Manual

Paper Feed
SM 4-46 D017/D018/D019/D020/D084/D085

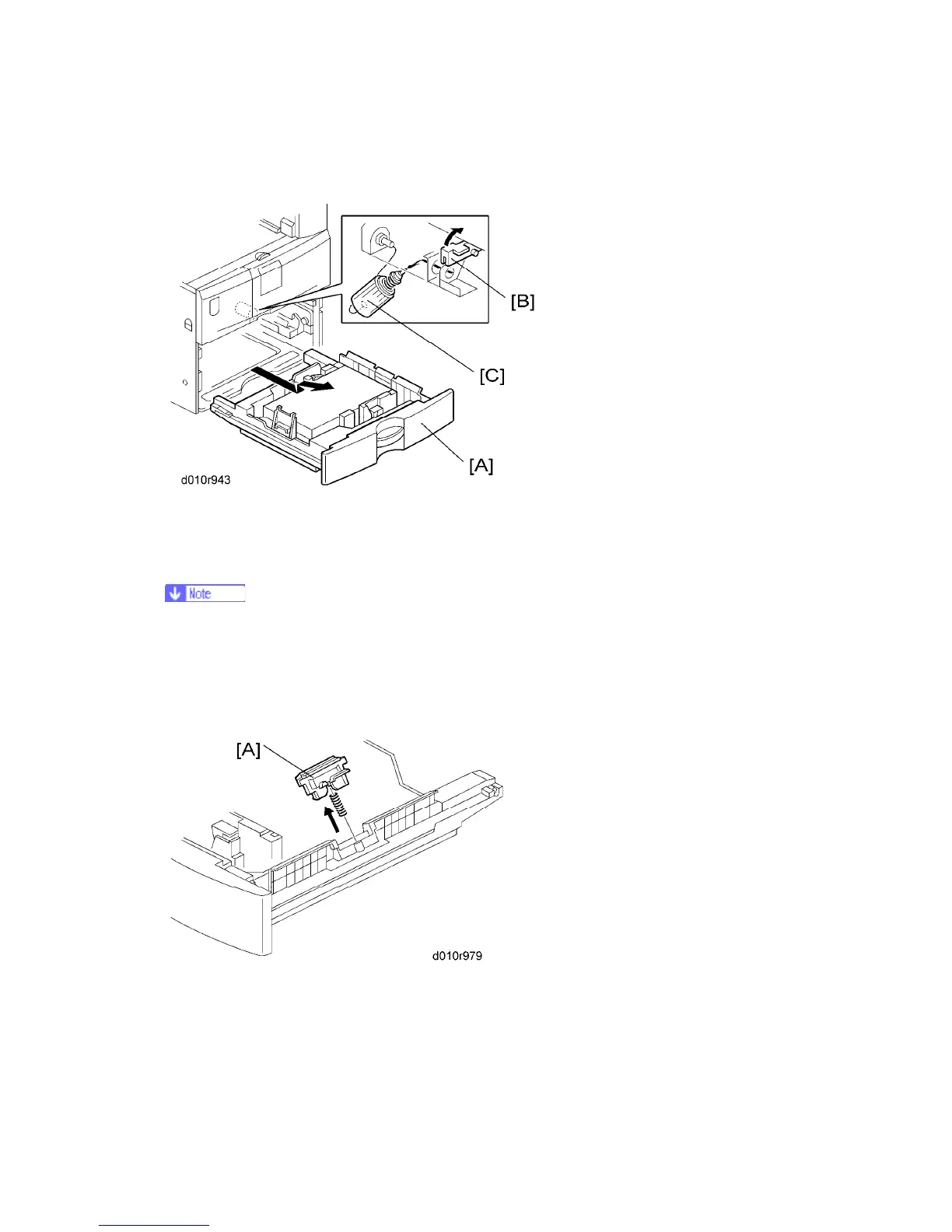

4.8.2 FEED ROLLER: TRAY 2
1. Pull out the paper tray 1 and 2 [A].
2. Pull up the stopper [B].
3. Paper feed roller [C]
 Do not touch the roller surface with bare hands.
 After reinstalling the feed roller, reset the stopper [B].
4.8.3 FRICTION PAD
1. Pull out the paper tray.
2. Friction pad [A] (spring x 1)

Ricoh D017 Specifications

General

Brand	Ricoh
Model	D017
Category	Copier
Language	English
