ELECTRICAL COMPONENT LAYOUT
SM 3 B391
Large
Capacity Tray
B391

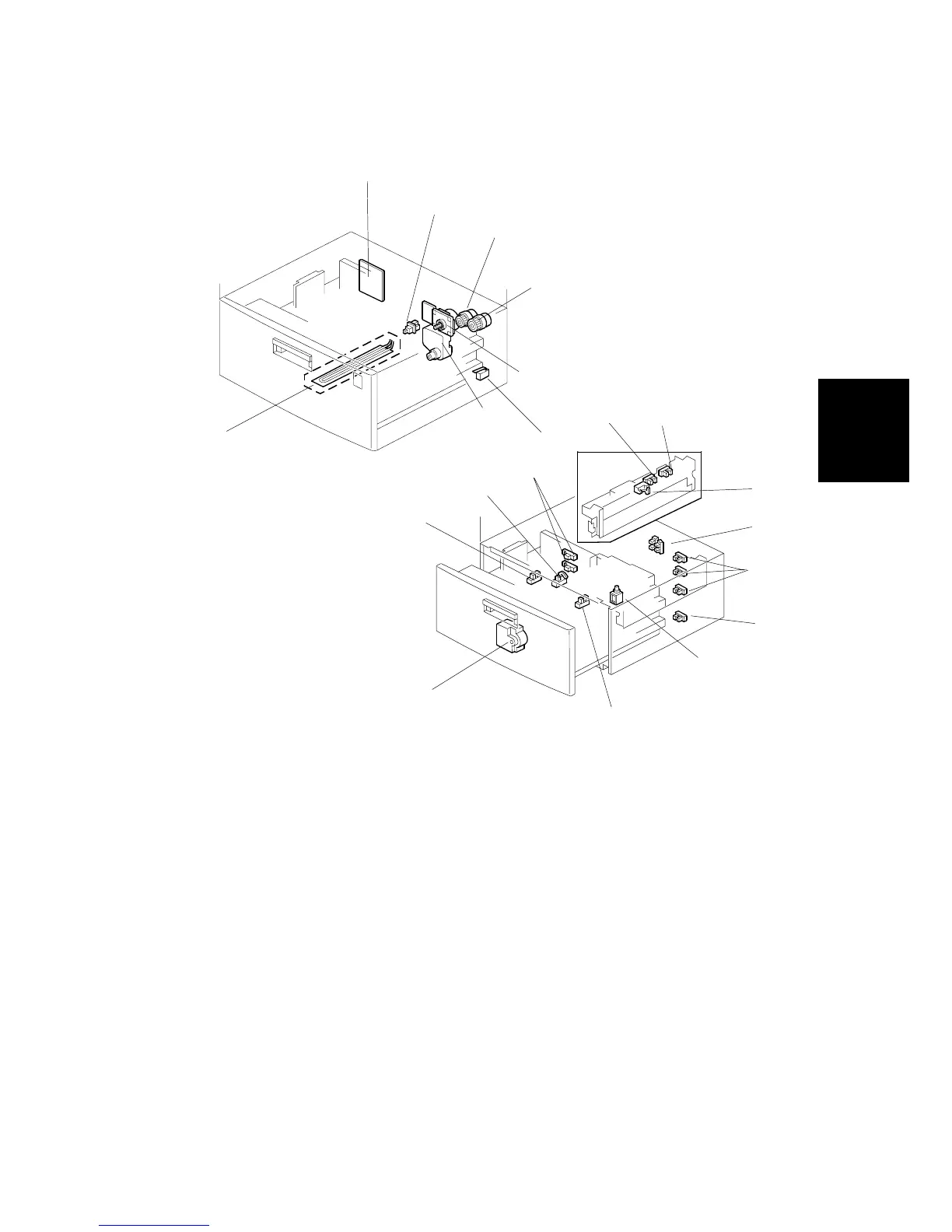

1.3 ELECTRICAL COMPONENT LAYOUT
1. Main Board
2. Tray Sensor (Switch)
3. Relay Clutch
4. Paper Feed Clutch
5. Tray Motor
6. Tray Lift Motor
7. Tray Heater (option)
8. Right Tray Paper End Sensor
9. Upper Limit Sensor
10. Relay Sensor
11. Side Fence Open/Closed Sensors
12. Paper Height Sensors 1, 2, 3
13. Lower Limit Sensor
14. Side Fence Solenoid
15. Rear Fence Return Sensor
16. Rear Fence Motor
17. Rear Fence Home Position
Sensor
18. Left Tray Paper End Sensor
19. Paper Height Sensors 4, 5
20. Right Cover Switch
B391D102.WMF
B391D103.WMF
2
1
3
4
5
6
7
8 9
10
11
12
13
14
15
16
17
18
19
20
