Ricoh D017 User Manual

TRAY MOTOR AND HALF TURN SENSOR REPLACEMENT
SM 7 D385
Internal Shift
Tray SH3010
D385
3.2 TRAY MOTOR AND HALF TURN SENSOR
REPLACEMENT

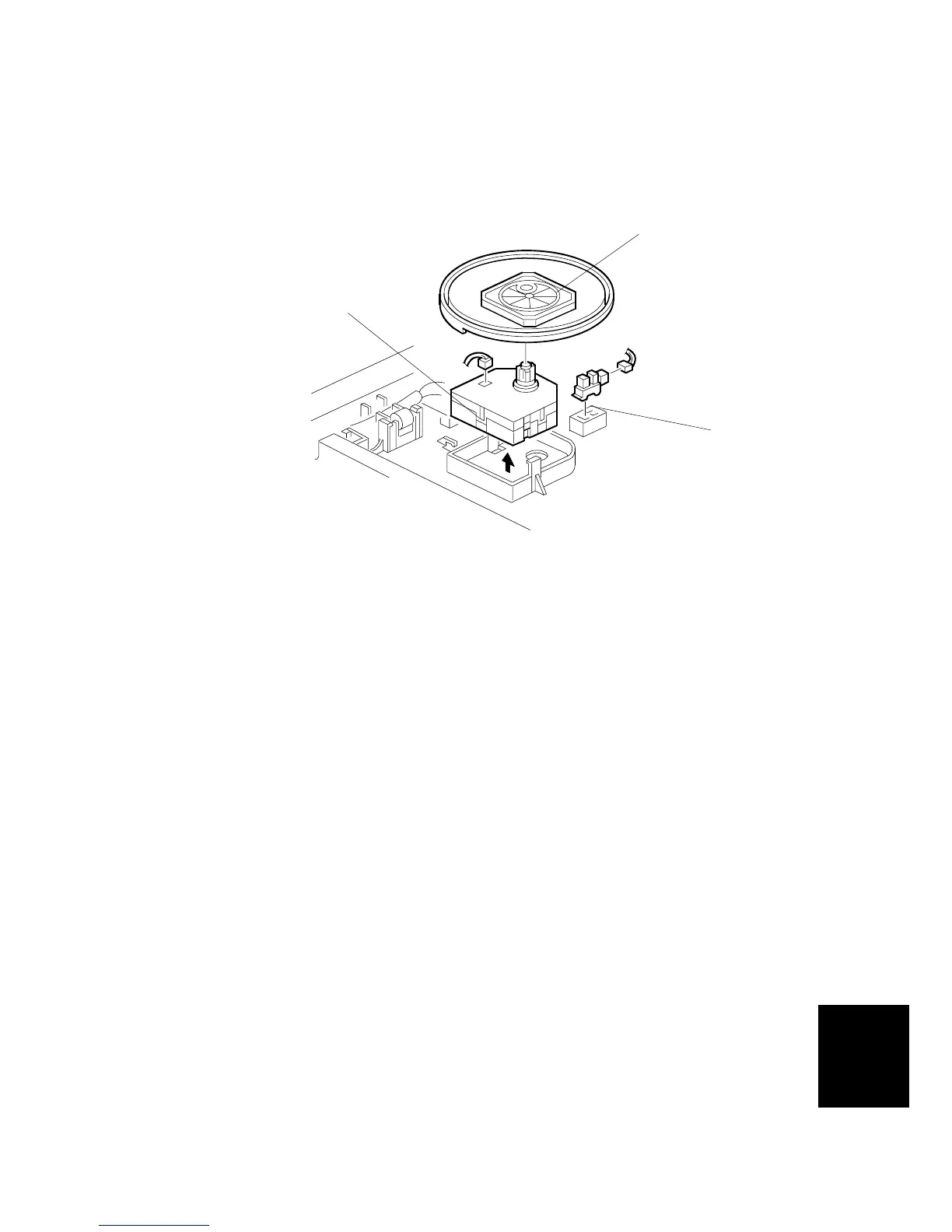

3.2.1 REPLACING THE TRAY MOTOR
1. Remove the slip disc [A].
2. Remove the tray motor [B] from the motor holder (1 connector).
3.2.2 REPLACING THE HALF TURN SENSOR
1. Remove the half turn sensor [C] (1 connector).
B459R102.WMF
[A]
[B]
[C]
